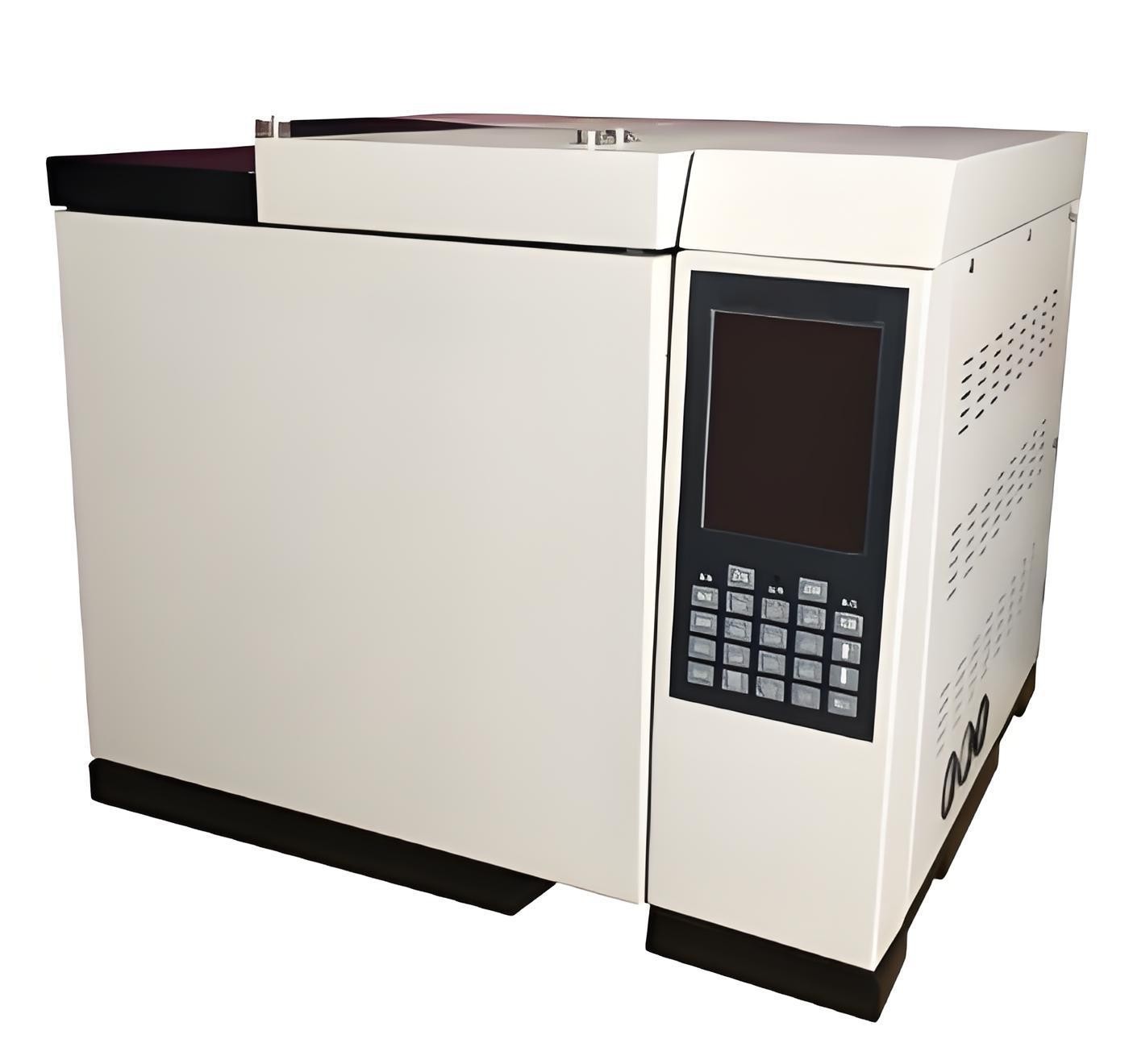

KGC-1189Desktop Dissolved Gas Analysis Analyzer
Rockwill Electric GROUP Co., Ltd
16yrs 700++
staff 108000m²+m² US$150000000+
Key attributes
| Brand | ROCKWILL |
| Model NO. | KGC-1189Desktop Dissolved Gas Analysis Analyzer |
| Signal output digits | 24 Bit |
| Temperature control accuracy of column box | ± 0.02℃ |
| Display accuracy | 0.01℃ |
| Series | KGC |
Product descriptions from the supplier
Description
Overview：
The KGC-1189 Desktop Dissolved Gas Analysis Analyzer（DGA） is suitable for the determination of the content of dissolved gas components in the insulating oil of the power system. With a single injection, it can complete a comprehensive analysis of the contents of seven gas components dissolved in the insulating oil, namely hydrogen (H₂), carbon monoxide (CO), carbon dioxide (CO₂), methane (CH₄), ethylene (C₂H₄), ethane (C₂H₆), and acetylene (C₂H₂). Its minimum detection concentration for acetylene can reach 0.1 ppm.
Main feature:
Built - in remote control technology for intuitive display of instrument gas path pressure
Remote control technology for temperature setting and display operations of the instrument
Remote control technology for one - key startup
Computer remote control to complete operations such as ignition and current setting with a click
Digital FID electronic zero - adjustment technology to enhance the instrument's anti - interference ability
Thermal conductivity tungsten filament protection function against gas interruption
Technology parameters:
Gas path process :
Schematic diagram:
Schematic diagram of hydrogen flame ionization detector (FID)
Structural diagram of hydrogen flame ionization detector (FID)
Q: What is a SF6 circuit breaker?
A:
An SF6 circuit breaker is a type of high-voltage circuit breaker that uses sulfur hexafluoride (SF6) gas as the arc extinguishing and insulating medium. It can safely interrupt electrical current and isolate electrical circuits.
Q: What is SF6 used for?
A:
SF6 (sulfur hexafluoride) is mainly used as an arc extinguishing and insulating medium in high-voltage electrical equipment like circuit breakers, switchgear, and transformers. It's also used in some types of high-voltage transmission and distribution systems, and in some industries for leak detection and as a tracer gas due to its stability and unique properties.
