KWJC-3A Series high-current generator

discuss personally

Model

Basic info Product Detail Supplier

Basic info

Brand	Wone Store
Model NO.	KWJC-3A Series high-current generator
Rated voltage	220V
Rated capacity	80kVA
Series	KWJC-3A Series

Product Detail

Overview

The KWJC-3A high-current generator is a new type of test bench developed for high and low voltage switches. It can be used by manufacturers or relevant quality inspection departments. To ensure safety, it conducts overcurrent and temperature rise tests on switches.

The test current is sent out by a two-magnetic-circuit high-current generator. The current in one magnetic circuit can be adjusted by a variable-week transformer, and the second magnetic circuit directly inputs voltage from the power supply. This is set to meet the high multiple instantaneous rated current of the switch for short-circuit protection tests. When the switch conducts a low multiple overload delay test, it can be tested by adjusting the single magnetic circuit.

Parameters

Project		Parameters
Power input	Rated voltage	AC 380V±10% 50Hz
	Power Input	3-phase 4-wire
Rated capacity		2X40kVA
Maximum delayed current output capacity		1600A1.05 2hour 1600A1.2 5min 1600A1.5 2min 1600A2 1min
Maximum short - term output current output capability		15000A
millisecond timer range		999.999s resolution 1ms
3-phase voltage output		0~1400V
Operating temperature		-10℃-50℃
Size		1650mmx700mmx1700mm

Know your supplier

Wone Store

Main Categories

High Voltage Electrical Apparatus/Low Voltage Electrical Apparatus/Wire cable/Instrument meters/New energy/Tester/Production equipment/Generator/Electrical fittings/Integrated Electrical Equipment/Instrument Transformer/Equipment Parts

Business Type

Sales

Highest Annual Export (USD)

$300000000

Professional Experience

1 years

Workplace

1000m²

占位

占位

Related Products

Related Knowledges

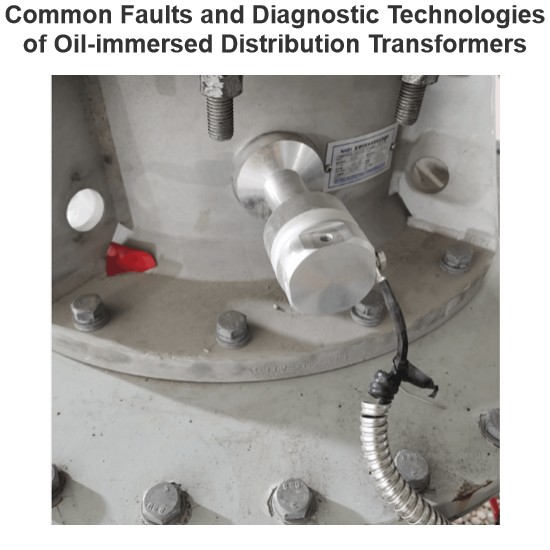

Common Faults and Diagnostic Technologies of Oil-immersed Distribution Transformers

Common Faults and Diagnostic Technologies of Oil-immersed Distribution Transformers

1.Common Faults and Diagnostic Measures1.1 Transformer Oil Leakage1.1.1 Oil Leakage from Tank Weld SeamsFor oil leakage at flat joints, direct welding is applicable. For leakage at corners or joints reinforced with stiffeners, the exact leakage point is often difficult to locate, and re-leakage may occur after welding due to internal stress. For such cases, repair welding with an added iron plate is recommended: for two-surface joints, the iron plate can be cut into a spindle shape for welding;

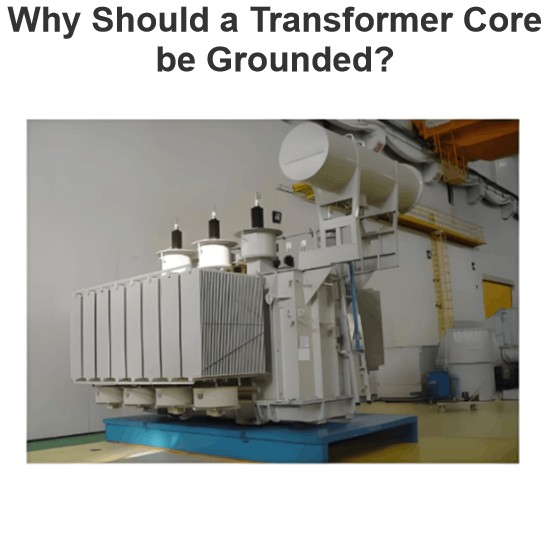

Why Should a Transformer Core be Grounded?

Why Should a Transformer Core be Grounded?

During transformer operation, the core and the metallic structures and components that secure the core and windings are exposed to a strong electric field, inducing a high potential relative to ground. If the core is left ungrounded, a potential difference can develop between the core and grounded parts such as clamps and the tank, leading to intermittent discharges. Additionally, the magnetic field surrounding the windings induces varying electromotive forces (EMF) in different metallic compone

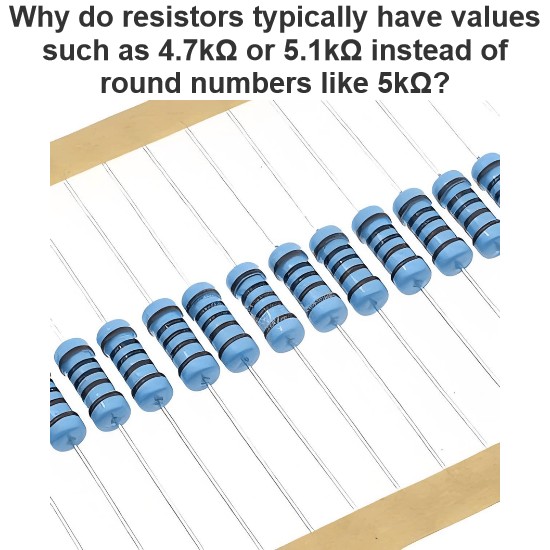

Why do resistors typically have values such as 4.7kΩ or 5.1kΩ instead of round numbers like 5kΩ?

Why do resistors typically have values such as 4.7kΩ or 5.1kΩ instead of round numbers like 5kΩ?

Many beginners in circuit design may find standard resistor values puzzling. Why are common values like 4.7 kΩ or 5.1 kΩ instead of round numbers such as 5 kΩ?The reason lies in the use of an exponential distribution system for resistor values, standardized by the International Electrotechnical Commission (IEC). This system defines a series of preferred values, including the E3, E6, E12, E24, E48, E96, and E192 series.For example:The E6 series uses a ratio of approximately 10^(

Analysis of Interlocking Protection Circuit for Furnace Transformer

Analysis of Interlocking Protection Circuit for Furnace Transformer

Currently, the company operates two electric arc furnace (EAF) transformers. The secondary voltage ranges from 121 V to 260 V, with a rated current of 504 A / 12,213 A. The high-voltage side has a total of eight tap positions, utilizing motor-driven off-circuit voltage regulation. The equipment is equipped with a reactor of corresponding capacity, connected in series to designated taps on the high-voltage side. These transformers have been in operation for over 20 years. Throughout this period,

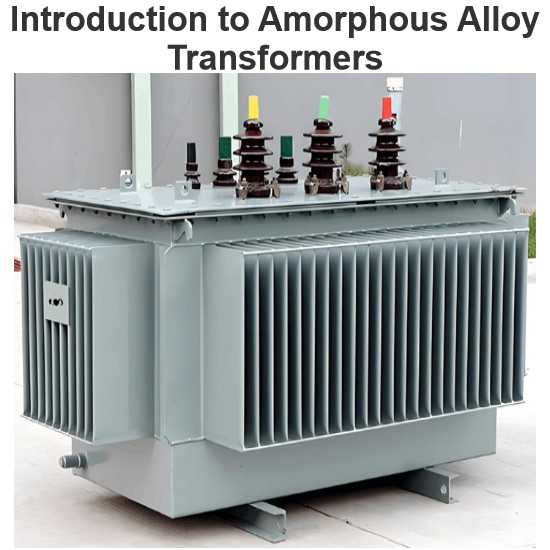

Introduction to Amorphous Alloy Transformers

Introduction to Amorphous Alloy Transformers

Amorphous alloy transformers, developed in the 1970s, represent a new generation of power transformers that utilize amorphous alloys as the core material instead of conventional silicon steel sheets. Compared to silicon steel-core transformers, they reduce no-load losses by approximately 70%–80% and no-load current by about 85%. These transformers are currently among the most energy-efficient distribution transformers available, making them ideal for applications in areas with low load uti

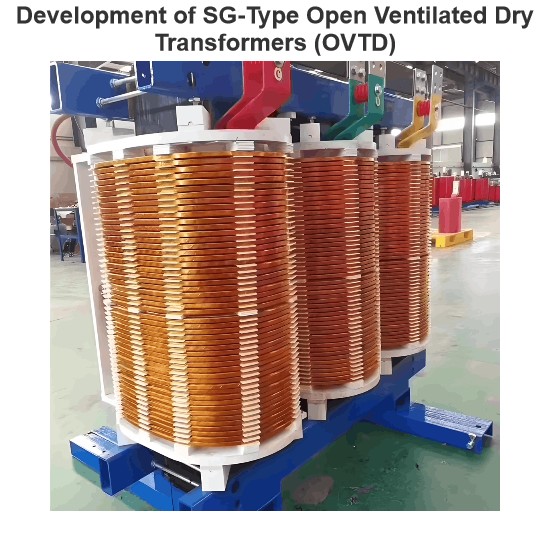

Development of SG-Type Open Ventilated Dry Transformers (OVTD)
