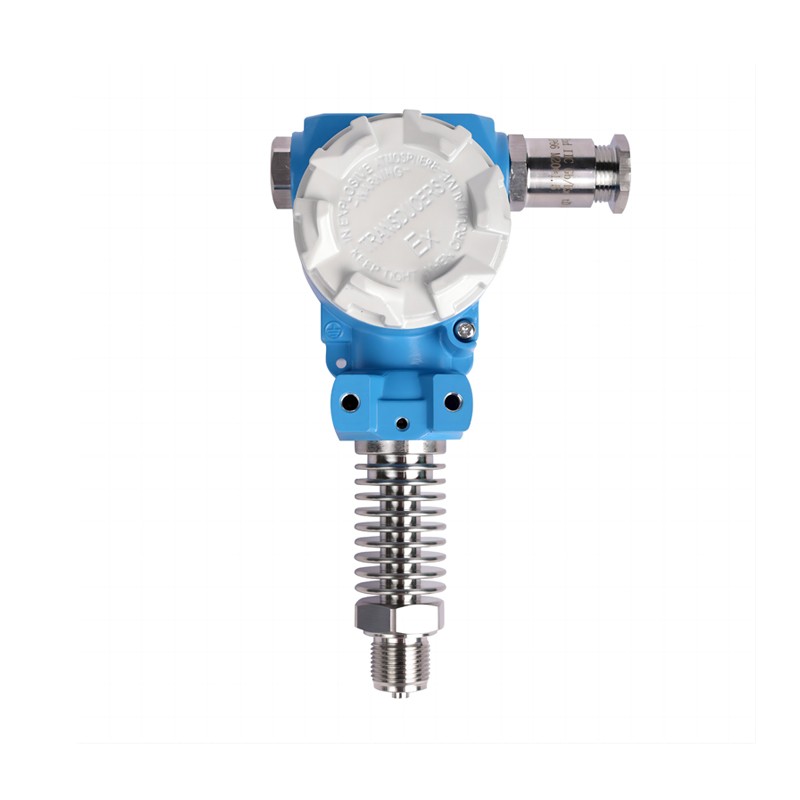

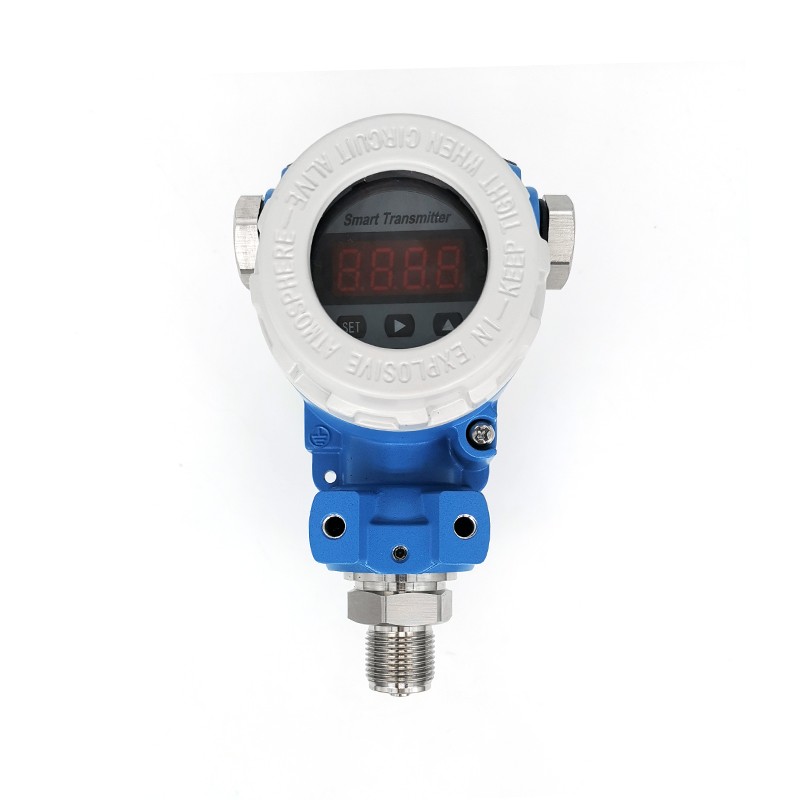

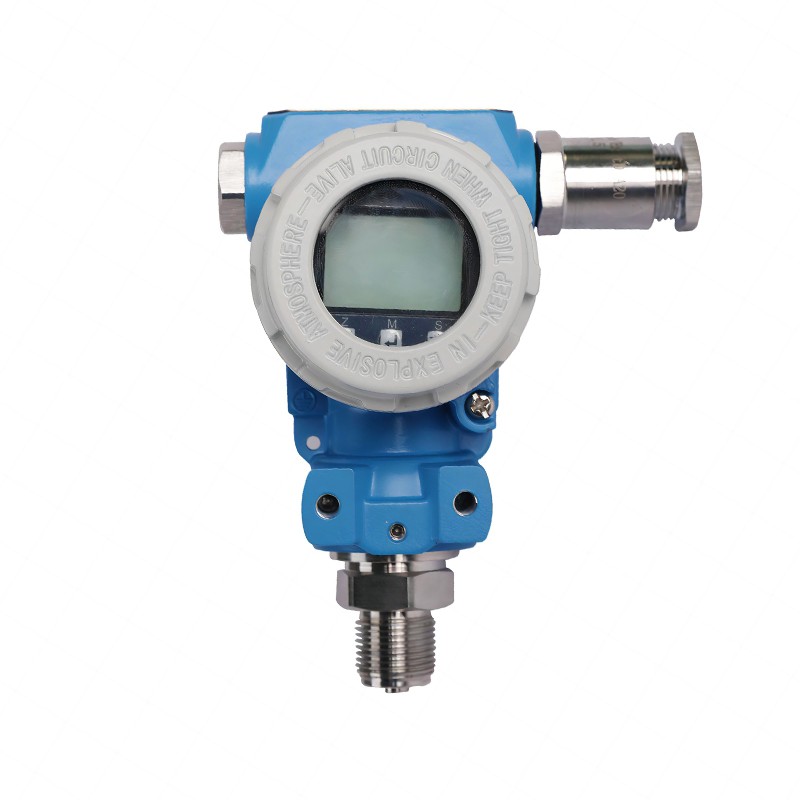

PG208 Protected Pressure Transmitter
$40.00
Model
PG208
Basic info
Brand Wone
Model NO. PG208 Protected Pressure Transmitter
Power supply 9~30VDC
Type of pressure Gauge pressure
display Yes
Series PG208
Product Detail

Description

The protective pressure transmitter adopts imported silicon wafers, with high precision and stable performance; As a sensing element, the silicon piezoresistive pressure core has a built-in processing circuit that converts the millivolt signal of the sensor into a standard voltage and current signal, and combines it with the unit instrument, DCS system, PLC, etc. to form an automatic control system, which is an ideal pressure measuring instrument in the field of industrial automation. It is an ideal pressure measuring instrument in the field of industrial automation to form an automatic control system.

Industry applications

It is widely used in various industrial fields (automation equipment and petroleum, chemical, natural gas, energy, etc.) where fluid pressure needs to be measured.

Features

Diaphragm isolation technology is adopted, which has high stability and high reliability.

Integrated chip, wide voltage power supply.

 Integral die-cast aluminum structure, strong and reliable.

 Frequency cut-off design, strong anti-interference ability, lightning protection.

Current limiting, voltage limiting, reverse polarity protection (current limiting output).

High precision, good stability, fast response speed and impact resistance.

Technical parameters

Measuring medium Liquids or gases (compatible with contact materials)
Pressure range - 100 k Pa~ 0 ~ 100 MPa
Pressure mode Gauge pressure, absolute pressure, negative pressure
Output signal 4 ~ 20 m A 0 ~ 10 VDC 0 ~ 5 VDC RS 485 customized
Supply voltage 9 ~ 30 VDC
Accuracy class ± 0.25 % FS ± 0.5 % FS Header display accuracy 0 . 5-level, digital tube (LED) display
working conditions Medium temperature - 40 ~ 80 °C Ambient temperature - 40 ~ 80 °C
Seismic performance 10 g( 20 ... 2000 Hz)
Overload capacity 1.5 times ~ 5 times
Frequency of response Analog signal output ≤ 500 Hz and digital signal output ≤ 5 Hz
Stable performance ± 0 . 1 % FS/year
Temperature drift ±0 . 01 % FS/ °C (within temperature compensation)
Ingress protection IP 65 IP 66
Explosion-proof type Flameproof ExdII.CT 6 Gb Intrinsically Safe ExiaII.CT 6 Ga
Load characteristics Current load ≤{(Us- 7.5 )÷ 0.02 ( Us=supply voltage)}Ω Voltage load≥ 100 k Ω
