Plasticized copper stranded wire
Zhejiang Wone IT Service Co., Ltd...
1yrs +
staff 1000+m² US$300000000+
Key attributes
| Brand | Switchgear parts |
| Model NO. | Plasticized copper stranded wire |
| Nominal cross-sectional area | 120mm² |
| Series | RN-2.5-120 |
Product descriptions from the supplier
Description

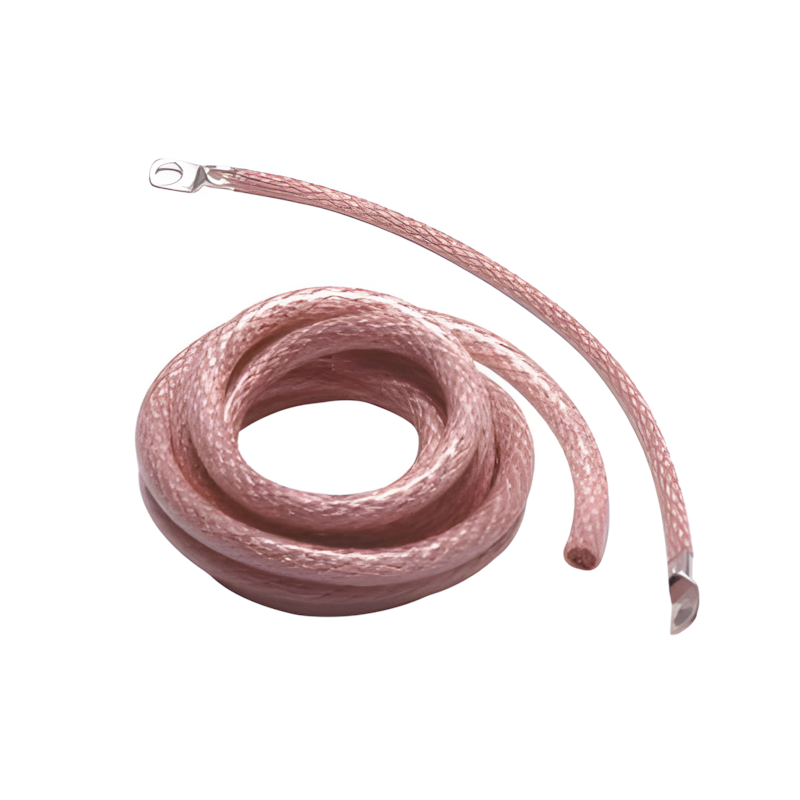

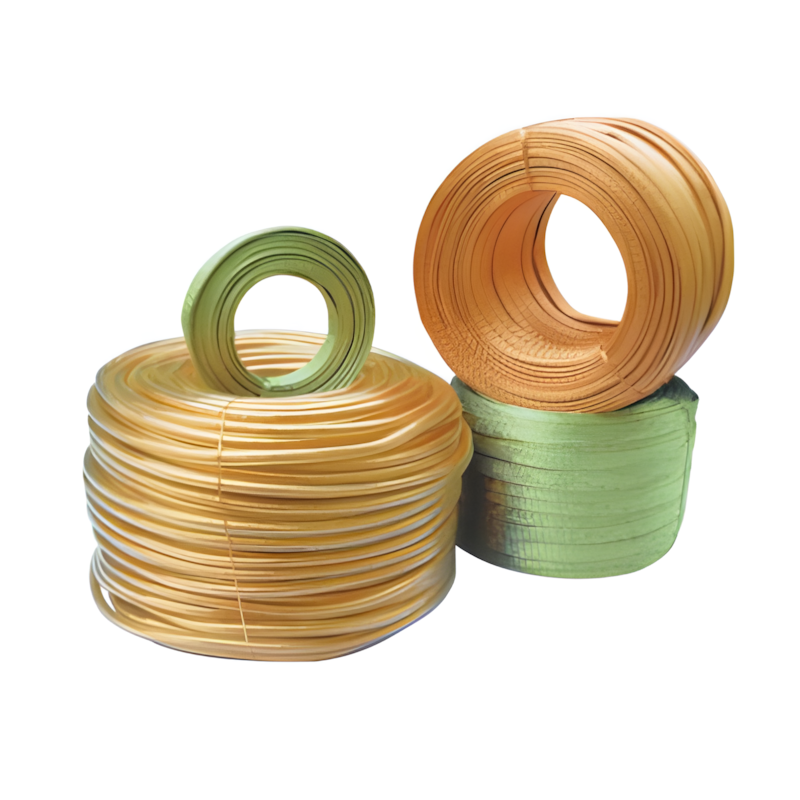

Plastic Coated Copper Strand is a flexible conductive material made by extruding a layer of insulating plastic (such as PVC, PE, XLPE, etc.) onto bare copper stranded wire or tin/silver plated copper stranded wire. It combines the excellent conductivity of copper stranded wire with the protective performance of plastic insulation layer, which can isolate external environmental interference, prevent electric shock and short circuit, and is widely used in low-voltage distribution, new energy, industrial control, civil electrical and other scenarios with clear insulation requirements.
Technical Specifications
| Standard Cross - section () | Calculating Weight (kg/km) |
|---|---|
| 2.5 | 40 - 50 |
| 3.5 | 60 - 70 |
| 5 | 80 - 90 |
| 8 | 100 - 110 |
| 10 | 120 - 130 |
| 12 | 150 - 160 |
| 16 | 180 - 190 |
| 20 | 230 - 240 |
| 25 | 280 - 290 |
| 35 | 380 - 390 |
| 50 | 560 - 570 |
| 70 | 780 - 790 |
| 95 | 1100 |
| 120 | 1350 |
