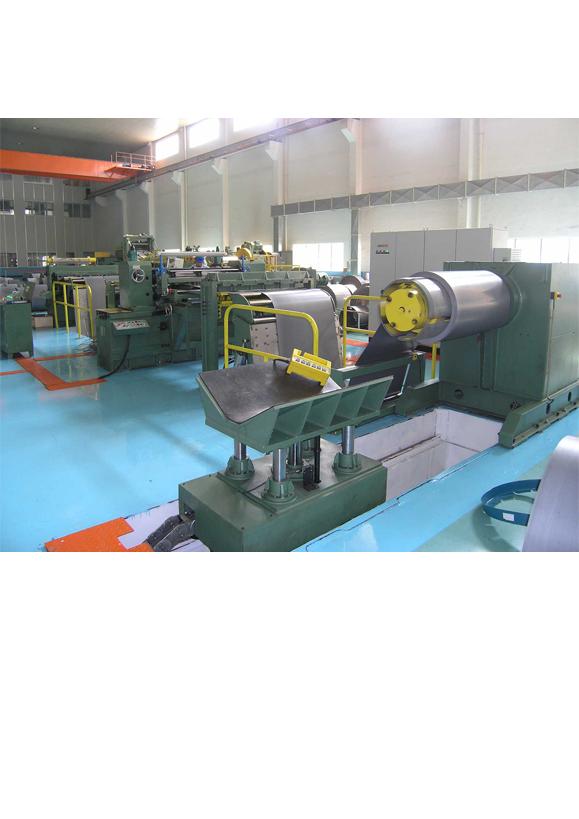

Transformer silicon steel sheet slitting machine
Key attributes
| Brand | Switchgear parts |
| Model NO. | Transformer silicon steel sheet slitting machine |
| Weight of material | Max.5000kg |
| Max.Width of coil | 1250mm |
| Slitting speed | 0-80(m/min) |
| Thickness | 0.18- 0.35mm |
| Cutting burr(mm) | ≤0.02 |
| Straightness deviation ofeach edge | ≤0.2mm/2m |
| Slit coil weight | Max.5000kg |
| Series | ZJX |
Product descriptions from the supplier
Application
This slitting line is special forslitting silicon steel sheet coil intostrips.
The core function of Transformer Silicon Steel Sheet Slitting Machine is to cut large rolls of silicon steel sheets into narrow strips of different widths, providing precise raw materials for transformer core lamination/winding. It is suitable for all transformers with silicon steel sheets as the core material. The specific types and names are as follows: low-voltage distribution transformers (10kV, 6kV, 3kV, etc.), medium voltage power transformers (35kV, 66kV, etc.), high-voltage power transformers (110kV, 220kV, etc.), ultra-high voltage power transformers (330kV, 500kV, etc.), oil immersed distribution transformers, oil immersed power transformers, epoxy resin cast dry-type transformers, Voltage Regulating Transformer (VRT) etc.
Features
Available for “disc cutter" and “spacer cutter”
Low burr and low camber slitting process due to optimizedshear design(high-rigidity Slitter and winding system)
Rational design of the machine, all machine units are drivenby electrically, pneumatically and hydraulically, efficient and easy to operate
OMRON PLC control system
Remote control system
Optional for scrap winding or scrap chopper device
Technical specification
Parameter TYPE |
ZJX(05 05)-80/1250 |
ZJX(10 05)-120/1250 |
ZJX(10 05)-150/1250 |
ZJX(10 05)-180/1250 |
Material thickness(mm) |
0.18-0.35 |
|||
Max. Width of coil(mm) |
1250 |
|||
Strip burr (mm) |
≤0.02mm |
|||
Strip width (m/min) |
40-1240 (Disc cutter) / 30-1240 (Spacer cutter) |
|||
Slitting speed(m/min) |
0-80 |
0-120 |
0-150 |
0-180 |
Number of strips |
Max.10 (Disc cutter) |
|||
Straightness deviation of each edge |
≤0.2mm/2m |
|||
Coil weight (kg) |
Max.5000 |
Max.10000 |
Max.10000 |
Max.10000 |
Slit coil weight (kg) |
Max.5000 |
Max.5000 |
Max.5000 |
Max.5000 |
The advantages and values of operation and auxiliary functions are as follows: 1 Drive and control: electric, pneumatic, hydraulic combined drive+Omron PLC control system+remote control, easy to operate and precise in operation, reducing manual intervention and improving operational efficiency; 2. Cutting flexibility: Supports dual modes of disc cutter and interval cutter, adapted to different slitting width requirements (30-1240mm), without the need for additional equipment replacement; 3. Waste disposal: Optional waste winding or shredding devices can be equipped to avoid waste accumulation, reduce manual cleaning costs, improve workshop cleanliness and production continuity, indirectly ensuring overall production efficiency.
The core differences among the four models are concentrated in the slitting speed and maximum coil weight: 1 ZJX (05 05) -80/1250: Slitting speed 0-80m/min, maximum roll weight 5000kg; 2. Other three models (120/150/180 series): maximum roll weight 10000kg, slitting speeds 0-120m/min, 0-150m/min, 0-180m/min, respectively. Selection suggestion: ① For small batch and light load production (roll weight ≤ 5000kg), ZJX (05 05) -80/1250 can be selected for better cost; ② Based on the demand for medium to high speed (roll weight ≤ 10000kg), select the 120 series (medium speed), 150 series (high speed), and 180 series (ultra high speed) according to the target production capacity.
The core design of quality control includes optimized shear design and high rigidity longitudinal cutting and winding system, which can achieve low burr and low warpage slitting effect; The specific quality indicators are: 1 Slitting burrs ≤ 0.02mm; 2. Straightness deviation of strip edge ≤ 0.2mm/2m; During the slitting process, the warpage of the strip material is low, which can meet the high-precision requirements of silicon steel strip material for transformer core processing.
