Cable Testing Methods | Fault Detection & Location Techniques

Leon
Field: Fault Diagnosis
China

I. Methods for Cable Testing and Inspection:

  • Insulation Resistance Test: Use an insulation resistance tester to measure the insulation resistance value of the cable. A high insulation resistance value indicates good insulation, while a low value may suggest insulation problems requiring further investigation.

  • Voltage Withstand Test: Apply a high-voltage test using a high-voltage tester to verify whether the cable can withstand high voltage under its rated operating conditions. Under normal circumstances, the cable should endure a test voltage higher than its rated voltage without breakdown.

  • Resistance Test: Use a resistance meter to measure the cable’s resistance. This test evaluates the resistance between conductors. Generally, the resistance value of the cable should fall within a specified range.

  • Short-Circuit Test: Use a short-circuit tester to check for short-circuit faults in the cable, such as shorts between conductors or ground faults.

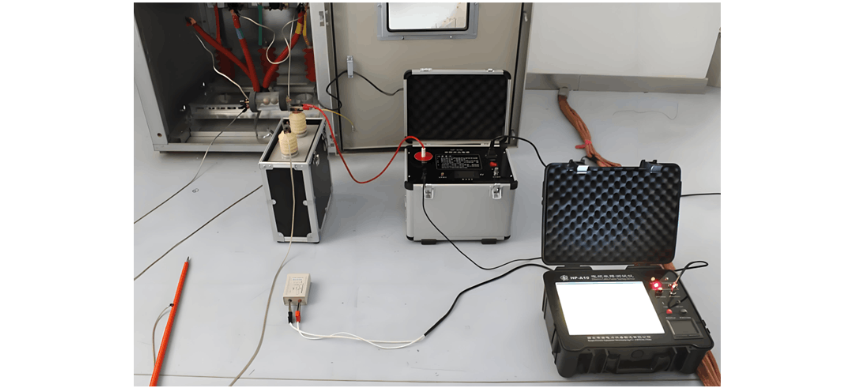

  • Fault Location Test: When a cable fault exists, use a fault locator to pinpoint the exact location of the fault. Common fault location methods include Time Domain Reflectometry (TDR) and Frequency Domain Reflectometry (FDR).

  • Thermal Imaging Test: Use an infrared thermal imager to scan the cable and detect potential local hot spots. Hot spots are often indicators of cable problems, such as excessive current, poor contact, or insulation failure.

II. Methods for Locating Cable Faults:

  • Visual Inspection Method: First, inspect the cable’s exterior for visible damage, such as cuts, cracks, or aging. Pay attention to cable joints and insulation sections to check for looseness, damage, or deterioration.

  • Insulation Resistance Testing Method: Use an insulation resistance tester to perform insulation resistance measurements. A low insulation resistance value may indicate insulation faults (e.g., damaged insulation or moisture ingress), which could lead to circuit failures.

  • High-Voltage Withstand Test Method: Use a high-voltage tester to perform a withstand voltage test, typically at around 1.5 times the rated voltage. If the cable successfully withstands the test without breakdown, it indicates no insulation fault; otherwise, an insulation fault may exist.

  • AC/DC Resistance Testing Method: Use an AC/DC resistance tester to measure both AC and DC resistance of the cable. This test checks grounding resistance and conductor-to-conductor resistance.

  • Fault Location Testing: When a fault is present, use a fault locator to determine the exact fault position. Common methods include Time Domain Reflectometry (TDR) and Frequency Domain Reflectometry (FDR).

  • Thermal Imaging Method: Use an infrared thermal imager to scan the cable and detect localized hot spots, helping to identify potential fault locations.

  • Open-Circuit Test Method: Perform an open-circuit test by disconnecting or reconnecting different cable sections to check continuity, thereby identifying potential open-circuit points.

The selection of cable fault-finding methods should be based on actual conditions. Without the necessary instruments, equipment, or relevant expertise, it is recommended to seek assistance from qualified professionals.
