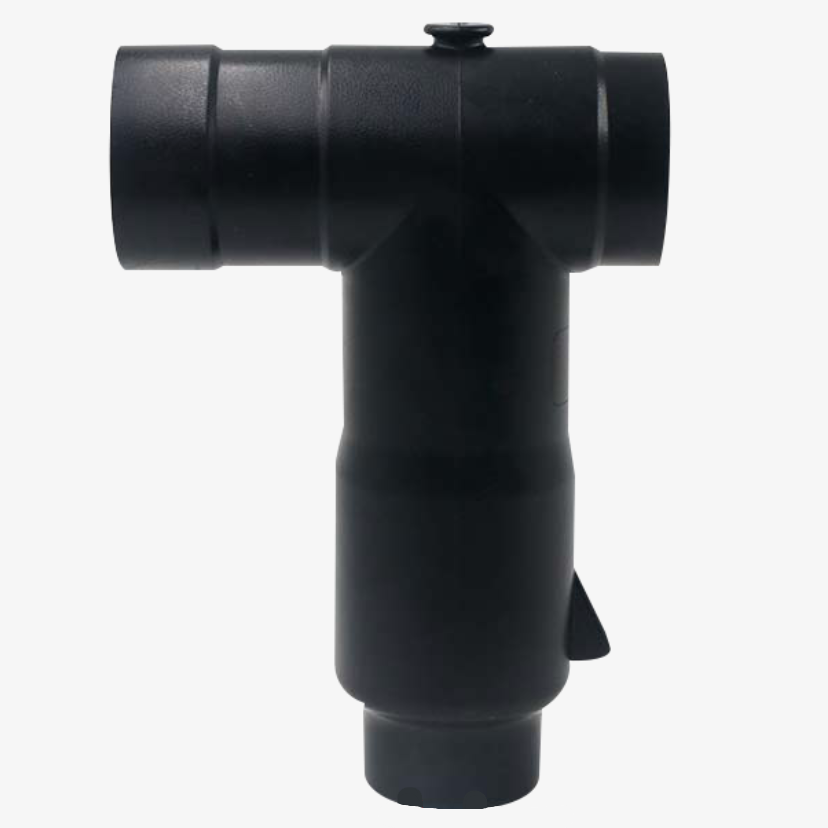

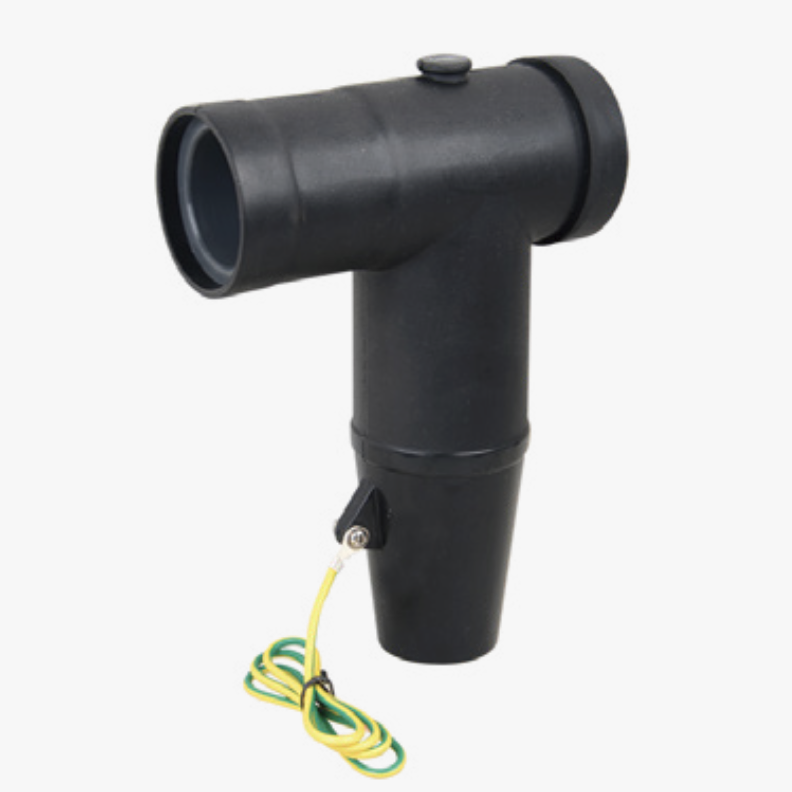

IEC Type Tee connector
discuss personally
Model

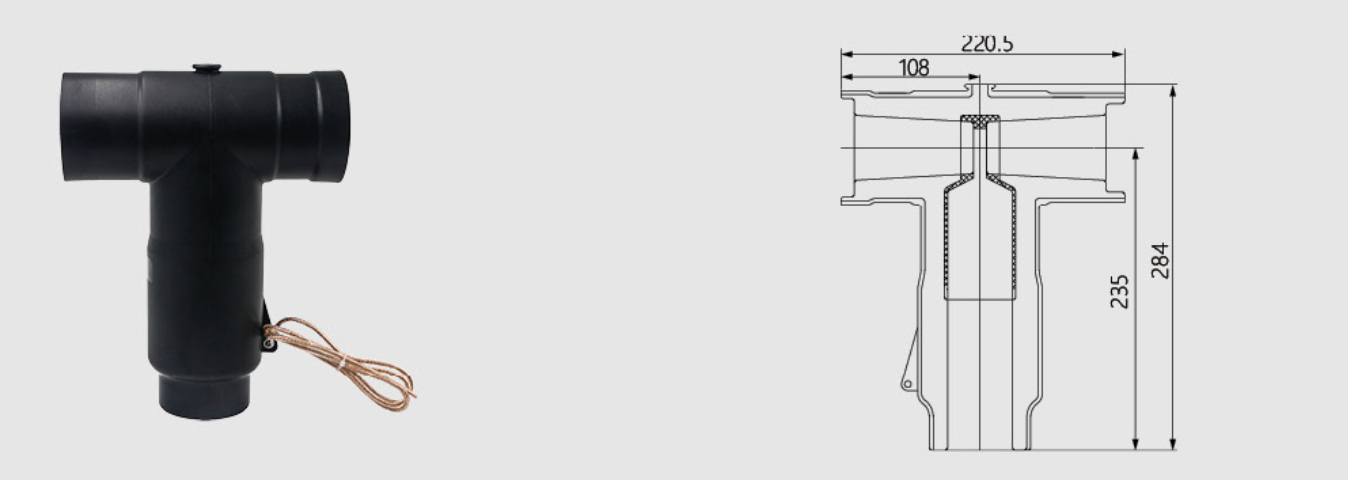

RW-QCBT-35/630A

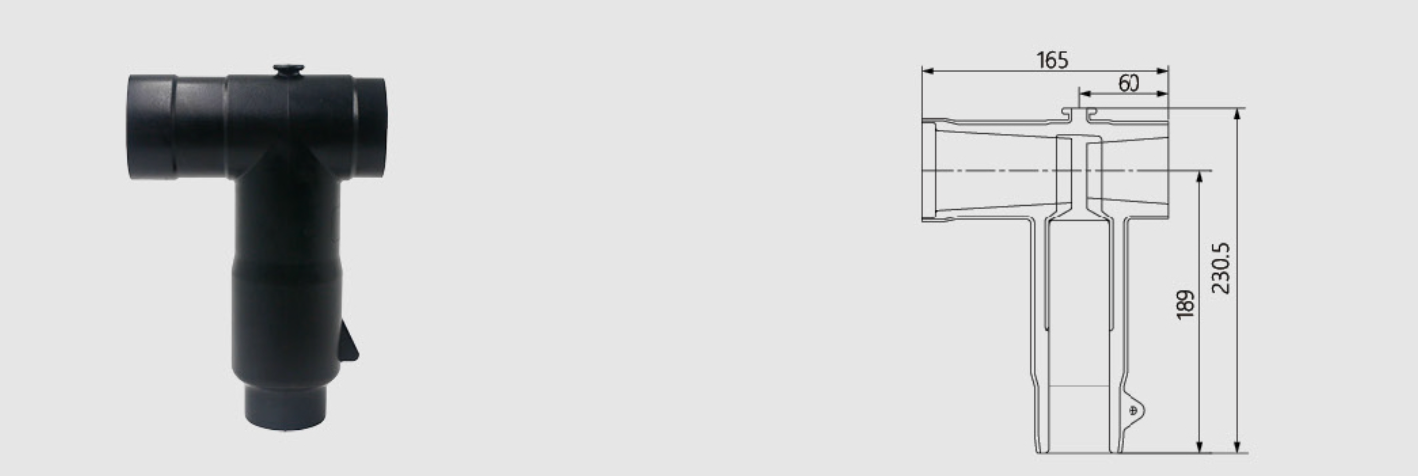

RW-QCBT-24/630A

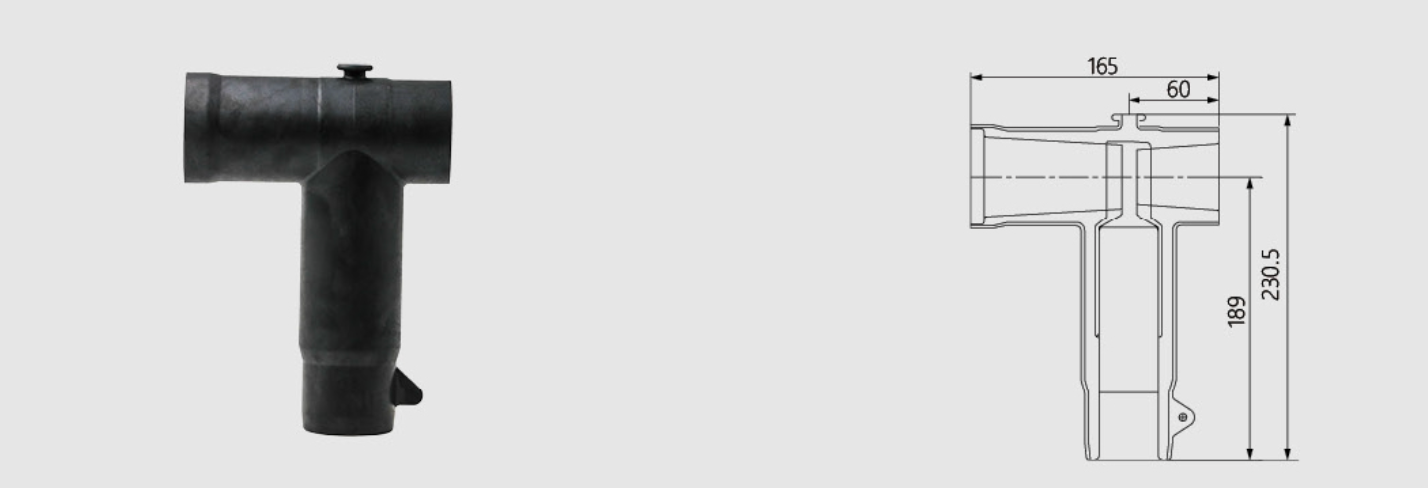

RW-QCBT-12/630A
Basic info Product Detail Supplier
Basic info
Brand Switchgear parts
Model NO. IEC Type Tee connector
Rated voltage 35kV
Rated normal current 630A
Series RW-QCBT
Product Detail

Summary
Shielding 630A IEC type Tee connector, directly connect to the bushing of switchgear and the wall bushing of cable branch box.provide fully insulated safety circuits for Switch cabinets and cable branch boxes. The tail can be plugged directly with insulating plugs, but also extend the connection after the connection Head or rear connector with surge arrester. Through 630A prefabricated joints to achieve single-phase or three-phase insulated cables and transformers, switchgear, branch boxes and other equipment connected. The products is suitable for indoor and outdoor installation, continuous rated current is 630A (900A overload for 8 hours). When the product is fitted with a suitable bushing or plug, a fully shielded and hermetically separable connection is provided. Long-term underwater and others Harsh conditions of operation. For cross-section of the cable cross-section of 25mm² ~630mm² XLPE cable.

Standard packing
Body of Tee connector
Silicone grease、towels
Stress cone
Instruction Manual
Positioning chain, Phase ribbon
nInsulating plug (incude Semi-conductive end cap)
Handles, gauze
Dust cap
Terminals
Rulers for installation
Bolt stud
Conformity certificat

Technical specification

Item

Parameter

Rate voltage

12kV                         24kV                     35kV

Rate current

630A                         630A                     630A

Power frequency withstand voltage for 1 min

42Kv                         54kv                      117kv

Impulse voltage (10 times of positive and negative polarity)

95kV                         125kV                    200kV

Partial discharge

       15kV，≤10pC               21kV，≤10pC            45kV，≤10pC

Shielding resistance

≤5000Ω

Ordering information

   Product model

RW-QCBT 12kV-630A-25mm²       RW-QCBT 24kV-630A-25mm²       RW-QCBT 35kV-630A-25mm²

RW-QCBT 12kV-630A-35mm²       RW-QCBT 24kV-630A-35mm²       RW-QCBT 35kV-630A-35mm²

RW-QCBT 12kV-630A-50mm²       RW-QCBT 24kV-630A-50mm²       RW-QCBT 35kV-630A-50mm²

RW-QCBT 12kV-630A-70mm²       RW-QCBT 24kV-630A-70mm²       RW-QCBT 35kV-630A-70mm²

RW-QCBT 12kV-630A-120mm²      RW-QCBT 24kV-630A-120mm²      RW-QCBT 35kV-630A-120mm²

RW-QCBT 12kV-630A-150mm²      RW-QCBT 24kV-630A-150mm²      RW-QCBT 35kV-630A-150mm²

RW-QCBT 12kV-630A-185mm²      RW-QCBT 24kV-630A-185mm²      RW-QCBT 35kV-630A-185mm²

RW-QCBT 12kV-630A-240mm²      RW-QCBT 24kV-630A-240mm²      RW-QCBT 35kV-630A-240mm²

RW-QCBT 12kV-630A-300mm²       RW-QCBT 24kV-630A-300mm²       RW QCBT 35kV-630A-500mm²

RW-QCBT 12kV-630A-400mm²       RW-QCBT 24kV-630A-400mm²       RW-QCBT 35kV-630A-500mm²

RW-QCBT 12kV-630A-500mm²       RW-QCBT 24kV-630A-500mm²       RW-QCBT 35kV-630A-500mm²

                                                                    RW-QCBT 24kV-630A-630mm²       RW-QCBT 35kV-630A-630mm²



Note: Selection should depend on the outside diameter of insulation of cable, the cable cross-section only for reference
