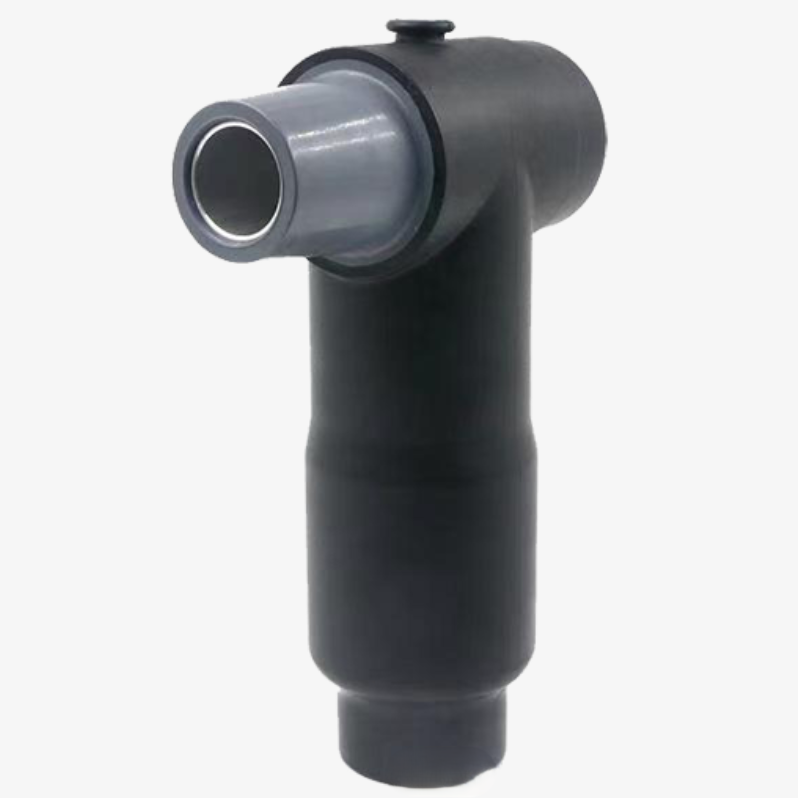

lEC Type Rear Connector

discuss personally

Model

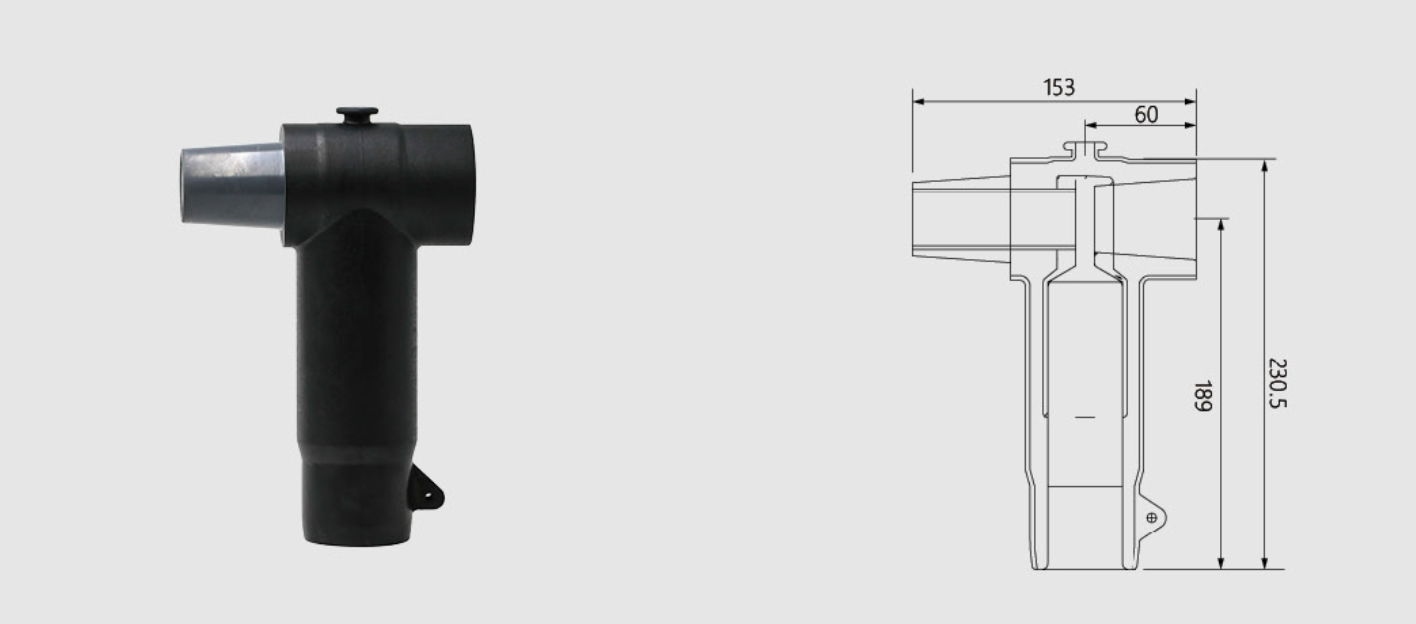

RW-HCBT-35/630A

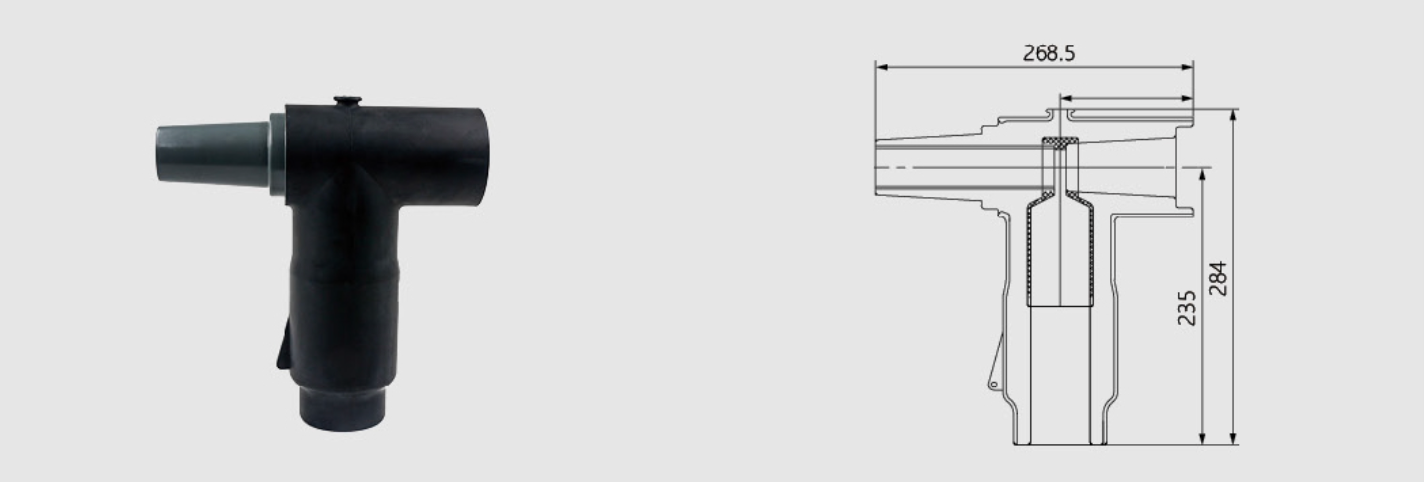

RW-HCBT-24/630A

RW-HCBT-12/630A

Basic info Product Detail Supplier

Basic info

Brand	Switchgear parts

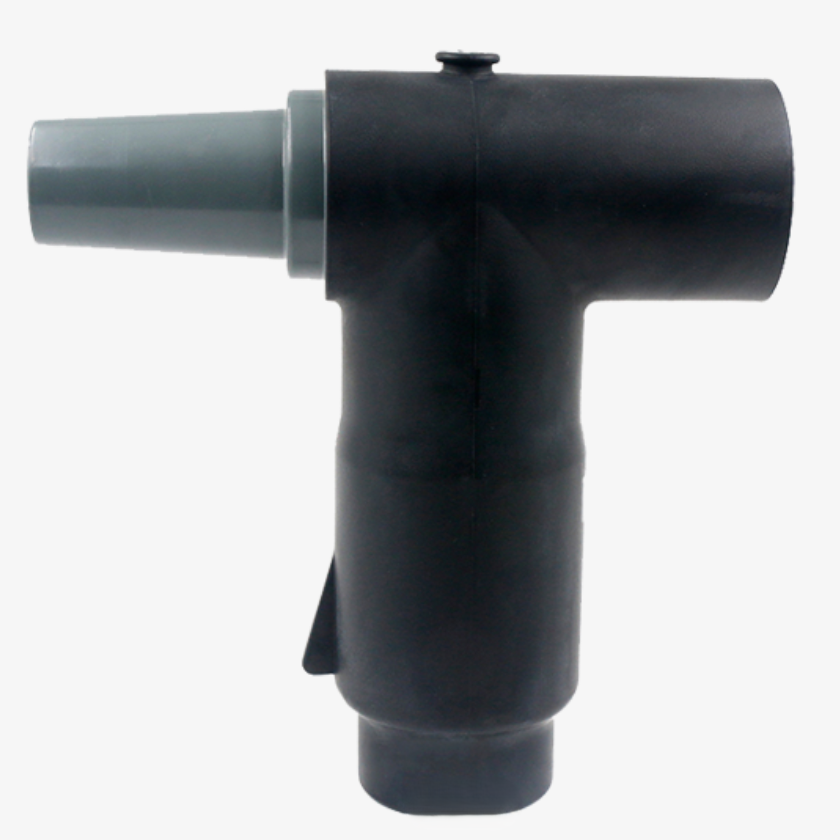

Model NO.	lEC Type Rear Connector
Rated voltage	35kV
Rated normal current	630A
Series	RW-HCBT

Product Detail

Summary
630A IEC type Rear connector connect with IEC type tee connector or other model Rear connector,extended cable connection circuit (branch), it can not be directly connected with the sleeve socket, wall bushing and so on. The tail can be plugged directly with insulating plug, but also can be extended to connect with the rear connector of another line or Rear connector with surge arrester. It is suitable for XLPE cable with 25mm²-630mm² cross-section of cable.

Standard packing
Body of tee connector Silicone grease、towels
Stress cone Instruction manual
Positioning chain、 phase ribbon Conductive rod
Gauze Dust cap
Terminals Rulers for installation
Bolt stud Conformity certificat

Technical specification

Item	Parameter
Rate voltage	12kV 24kV 35kV
Rate current	630A 630A 630A
Power frequency withstand voltage for 1 min	42kV 54kV 117kV
Impulse voltage (10 times of positive and negative polarity)	95kV 125kV 200kV
Partial discharge	15kV，≤10pC 21kV，≤10pC 45kV，≤10pC
Shielding resistance	≤5000Ω

Ordering information

Product model
RW-HCBT 12kV-630A-25mm² RW-HCBT 24kV-630A-25mm² RW-HCBT 35kV-630A-25mm²
RW-HCBT 12kV-630A-35mm² RW-HCBT 24kV-630A-35mm² RW-HCBT 35kV-630A-35mm²
RW-HCBT 12kV-630A-50mm² RW-HCBT 24kV-630A-50mm² RW-HCBT 35kV-630A-50mm²
RW-HCBT 12kV-630A-70mm² RW-HCBT 24kV-630A-70mm² RW-HCBT 35kV-630A-70mm²
RW-HCBT 12kV-630A-120mm² RW-HCBT 24kV-630A-120mm² RW-HCBT 35kV-630A-120mm²
RW-HCBT 12kV-630A-150mm² RW-HCBT 24kV-630A-150mm² RW-HCBT 35kV-630A-150mm²
RW-HCBT 12kV-630A-185mm² RW-HCBT 24kV-630A-185mm² RW-HCBT 35kV-630A-185mm²
RW-HCBT 12kV-630A-240mm² RW-HCBT 24kV-630A-240mm² RW-HCBT 35kV-630A-240mm²
RW-HCBT 12kV-630A-300mm² RW-HCBT 24kV-630A-300mm² RW-HCBT 35kV-630A-500mm²
RW-HCBT 12kV-630A-400mm² RW-HCBT 24kV-630A-400mm² RW-HCBT 35kV-630A-500mm²
RW-HCBT 12kV-630A-500mm² RW-HCBT 24kV-630A-500mm² RW-HCBT 35kV-630A-500mm²
RW-HCBT 24kV-630A-630mm² RW-HCBT 35kV-630A-630mm²

Note: Selection should depend on the outside diameter of insulation of cable, the cable cross-section only for reference
