| Brand | ROCKWILL |
| Model NO. | Amorphous Alloy Dry - type Transformer |
| Rated voltage | 10kV |
| Rated frequency | 50/60Hz |
| Rated capacity | 630kVA |
| Series | SCBH |
Product Introduction

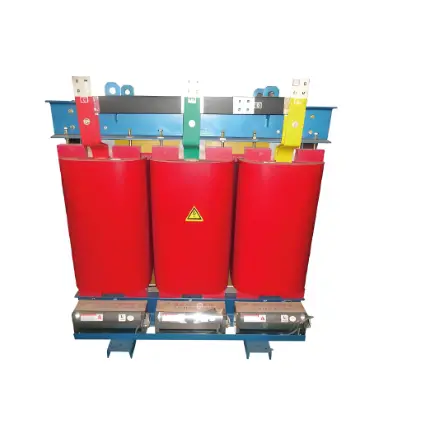

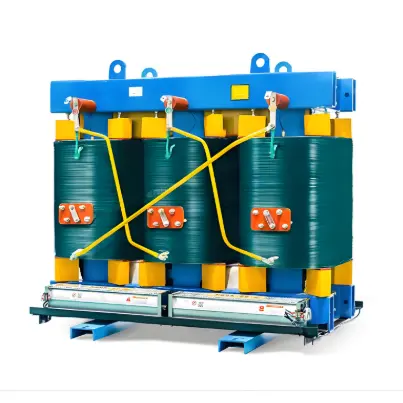

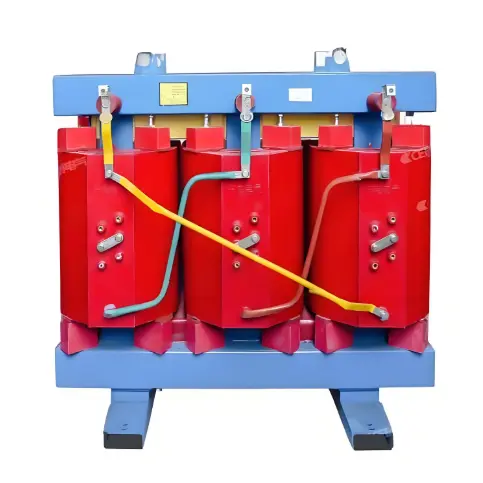

The SCBH15 amorphous alloy dry-type transformer is an efficient, energy-saving and environmentally friendly transformer. It adopts amorphous alloy core material and features low loss, low noise and high short-circuit resistance. Its no-load loss is significantly lower than that of traditional silicon steel sheet transformers, which can effectively reduce energy waste. It is suitable for places with high requirements for low-carbon environmental protection, such as urban distribution networks, industrial parks and new energy application scenarios. This transformer does not require insulating oil, has excellent fire resistance, is safe and reliable to use, and has low maintenance costs, making it an ideal choice for achieving green power development.
Scope of Application
The SCBH15 amorphous alloy dry-type transformer is widely applicable to fields with high requirements for energy conservation and environmental protection, such as urban power grids, industrial parks, commercial complexes, residential communities, hospitals, schools, airports and other public facilities. In addition, it also has important application value in new energy fields, such as photovoltaic power generation, wind power generation and distributed energy systems.
Product Description
Core Material: Adopts an amorphous alloy core with ultra-low loss characteristics. Compared with traditional silicon steel sheets, it can effectively reduce no-load loss and operating costs.
Structural Design: Dry-type structure, no need for transformer oil, eliminating the risk of oil leakage. It has excellent fire resistance, is safe and reliable, and is suitable for indoor use and densely populated areas.
Operational Performance: Features low noise and low temperature rise design, which can maintain stable performance during long-term high-load operation and extend the service life of the equipment.
Applicable Scenarios: Suitable for various occasions such as urban power grids, industrial parks, commercial complexes, schools, hospitals, airports, photovoltaic and wind power generation.
Main parameters
Rated capacity range |
30kVA ~ 2500kVA |
Primary voltage |
10kV, 6kV or 35kV |
Secondary voltage |
0.4kV or other voltage ratings |
Frequency |
50Hz or 60Hz |
Connect groups |
Dyn11 or Yyn0 |
Executive Standards
GB/T 10228 - 2015 |
Dry - type power transformer technical parameters and requirements |
IEC 60076 |
Power transformers |
IEC 60726 |
Dry - type transformers |
GB/T 4208 - 2017 |
Enclosure protection level (IP code) |
GB/T 17626.5 - 2008 |
EMC test and measurement technology |
-
