CYECT2-36W Electronic Current Transformers
Key attributes
| Brand | Wone Store |
| Model NO. | CYECT2-36W Electronic Current Transformers |
| Rated frequency | 50/60Hz |
| Rated insulation voltage | 40.5kV |
| Series | CYECT |
Product descriptions from the supplier
Product Overview
This series are fully enclosed rest casting construction, protective class is utilized by Rogowski Coil, measuring level Fe based nanocrystalline core; primary winding, secondary winding all sealed inside epoxy resin body, this is supportive type, full installation with low burden. Anti-dirtiness, humanity and maintenance free, long creepage distance improving external insulation. Compatible with rated frequency 50Hz, rated voltage 35kV AC indoor circle for measuring current, energy and relay.
Main technical parameter
Rated primary voltage: 35kV
Rated insulation level: 40.5/95/185kV
Rated secondary output: 0.2A(measuring); 200mV(protective)
Local standard:
GB/T 20840.8-2007<<Electronic Current Transformer>>
GB 1208-2006<<Electronic instrument transformer>>
Ambient temperature : -40℃-40℃
Altitude: 2000m
Installation site : outdoor

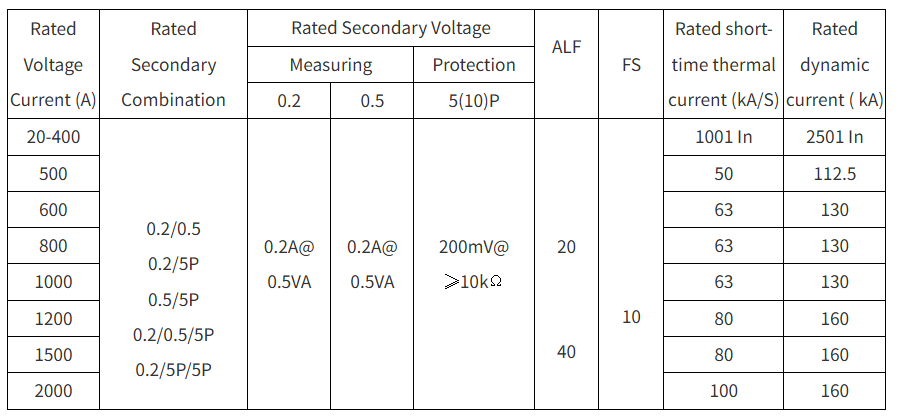

Specification

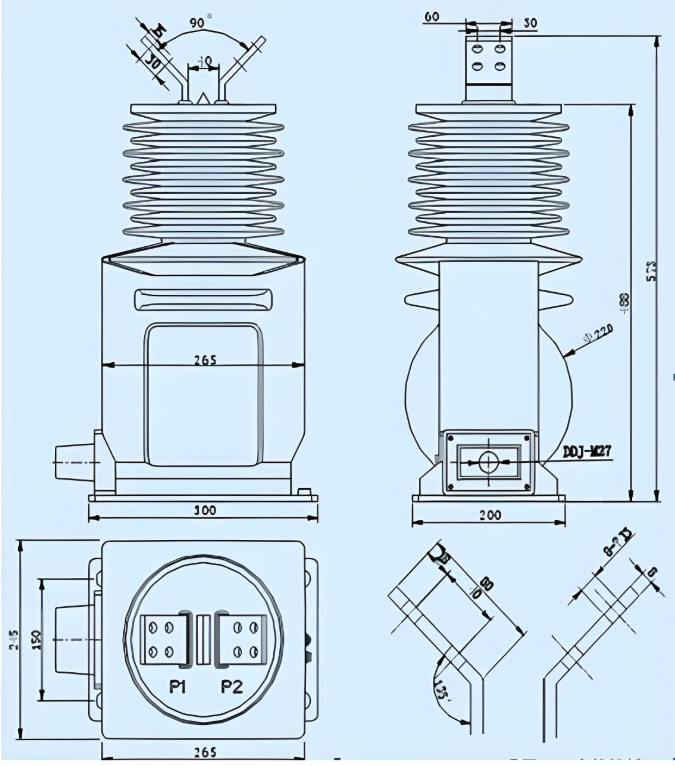

Outline drawing
