High and Low-Voltage Automatic Coil Winding Machine CNC and PLC Controlled with Durable Gearbox for Manufacturing Plants
Key attributes
| Brand | Wone |
| Model NO. | High and Low-Voltage Automatic Coil Winding Machine CNC and PLC Controlled with Durable Gearbox for Manufacturing Plants |
| Spindle speed(r/mim) | 6/16/21/60 |
| Max.torque(N.m) | 12000 |
| Spindle load capacity(kg) | 5000 |
| Series | DYJ |
Product descriptions from the supplier
Description

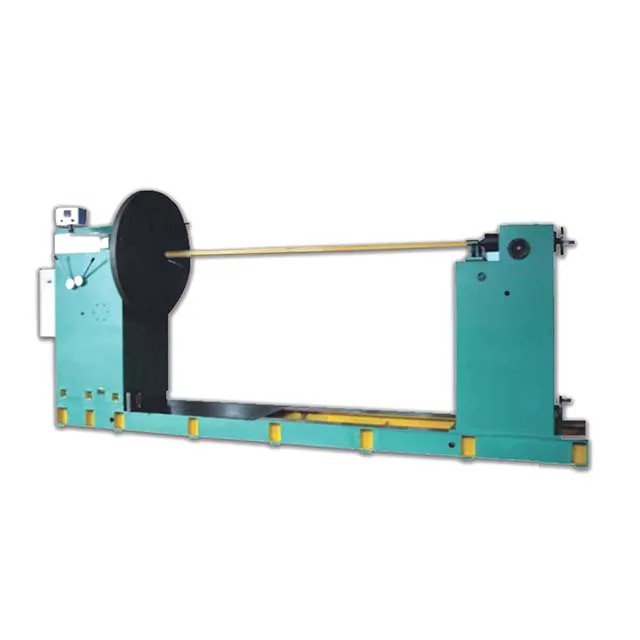

The DYJ High & Low Voltage Winding Machine is widely used to wind various specifications of small and medium-sized transformer coils. The operation method is easy and simple. When the machine is connected to the power supply (3-Phase AC380V), the switch is activated and the power indicator light is on, indicating that the machine is powered on. At this point, the operator can startthe winding operation by simply stepping on the foot switch. The gearbox of this machine adopts gear shifting and AC variable frequency control. It consists of a gearbox, tailstock and tailstock track. The worm gear in the gearbox is made of rare earth aluminum alloy and has strong wear resistance. The worm gear drive has good self-locking feature. When shifting is required, just shift the fork handle to the desired gear to achieve a reasonable speed. The machine starts steadily, the braking performance is stable, low noise, and the operation is convenient and flexible.
Specifications
Online store
On-time delivery rate
Response time
100.0%
≤4h
Company overview
Workplace: 65666m²m²
Total staff: 300+
Highest Annual Export(usD): 50000000
Services
Business Type: Design/Manufacture/Sales
Main Categories: Wire cable/High Voltage Electrical Apparatus/Low Voltage Electrical Apparatus/Instrument meters/New energy/Tester/Integrated Electrical Equipment/Production equipment/Generator/Electrical fittings
Whole life care manager
Whole-life care management services for equipment procurement, use, maintenance, and after-sales, ensuring safe operation of electrical equipment, continuous control, and worry-free electricity consumption.
The equipment supplier has passed platform qualification certification and technical evaluation, ensuring compliance, professionalism, and reliability from the source.
