JLDZXW1-17.5F 17.5kV Outdoor Single-Phase Combined Transformer
Key attributes
| Brand | Wone Store |
| Model NO. | JLDZXW1-17.5F 17.5kV Outdoor Single-Phase Combined Transformer |
| Rated frequency | 50/60Hz |
| Rated insulation voltage | 38kV |
| Series | JLDZXW |
Product descriptions from the supplier
Product Overview
The transformer is casted together by 1 CT and 1 PT with small size, it saves room. It can be used outdoor, Its highest voltage for equipment can be 17.5kV.The JLDZXW1-17.5F is a 17.5kV outdoor single-phase combined transformer, integrating current and voltage transformation. Its robust design resists harsh weather, ensuring precise metering and reliable performance for outdoor single-phase grids. Easy to install, it suits various outdoor applications with low maintenance needs.

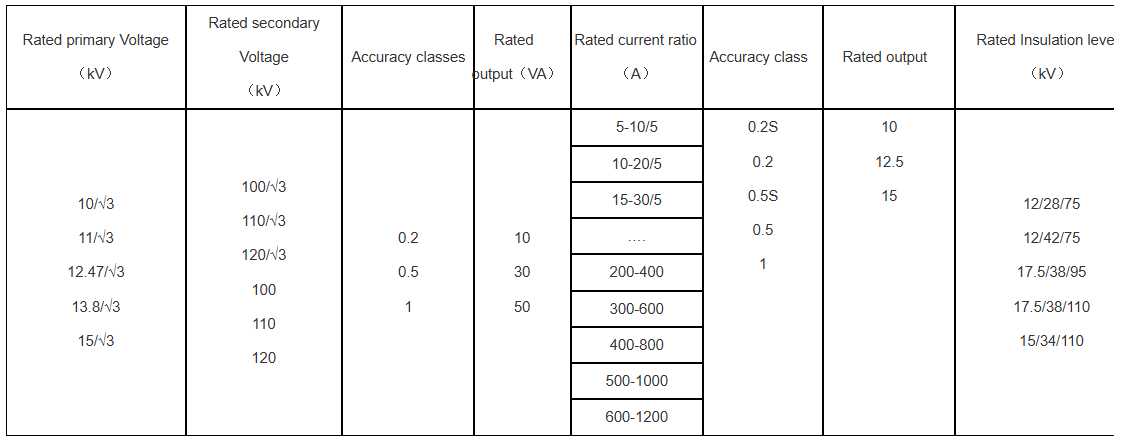

Technical Data
Outdoor use
Cast-resin insulated
Frequency 50Hz or 60Hz
Rated insulation level: 17.5/38/95kV
Standards: IEC 60044-1&2 IEC 61869-1&2&3
The transformer is casted together by 1 CT and 1 PT with small size, it saves room. It can be used outdoor, Its highest voltage for equipment can be 17.5kV.

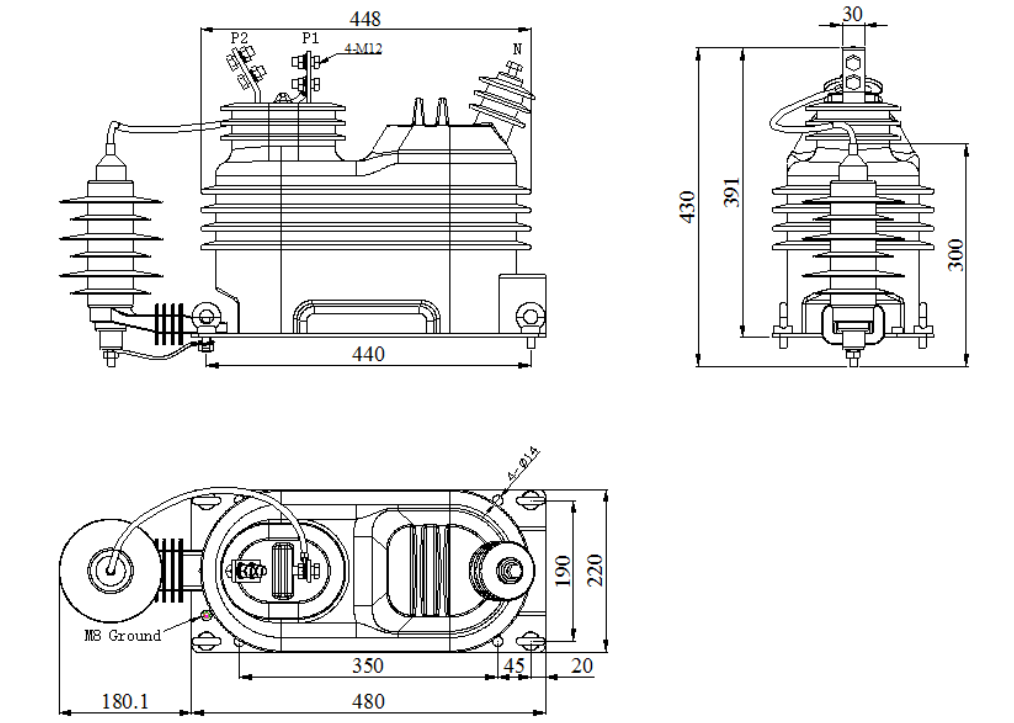

Outline drawing:

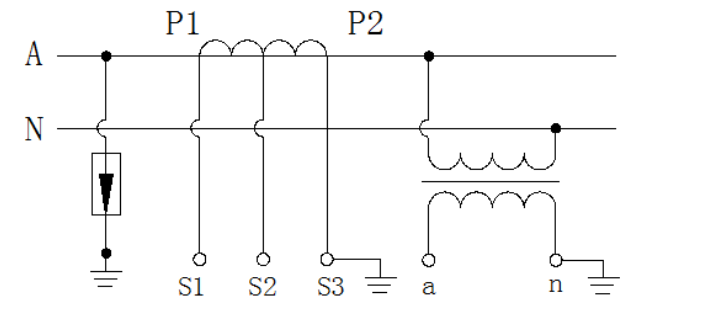

Wring diagram
