JLDZXW1-36 36kV Outdoor Three-Phase Combined Transformer
Key attributes
| Brand | Wone Store |
| Model NO. | JLDZXW1-36 36kV Outdoor Three-Phase Combined Transformer |
| Rated frequency | 50/60Hz |
| Rated insulation voltage | 36kV |
| Series | JLDZXW |
Product descriptions from the supplier
Product Overview
This three phase consists of three semi-insulation VTs of Y-Y wiring. Secondary leads in junction box is easy for wiring and testing. Use epoxy resin insulation stunt structure for outdoor installation. Applicable for highest voltage for equipments no more than 40.5kV for metering/measuring measurement in power system.
Features:
Use high properties iron core to meet high accuracy, big burden etc.
Use epoxy resin cast insulation structure to improve anti-pollution, anti-moisture etc.
Use full-sealed cast insulation type.
Outdoor installation.
Technical Data:
Outdoor use
Cast-resin insulated
Frequency 50Hz or 60Hz
Standards: IEC 60044-2 IEC 61869-1&3
Parameters:
Application:Use for highest voltage for equipments no more than 40.5kV, for current/voltage measurement in power system.

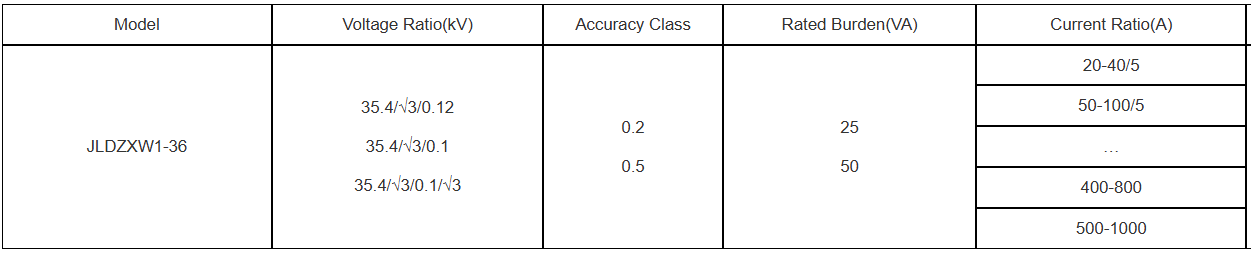

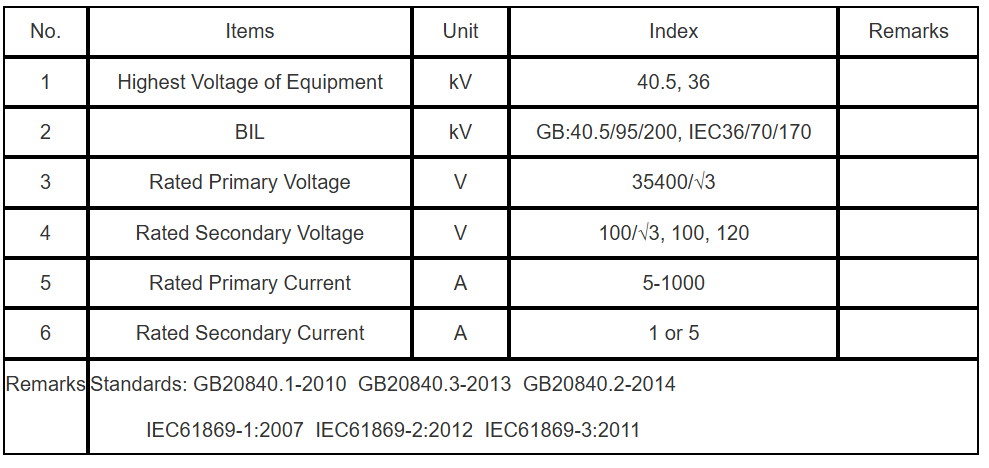

Technical Parameters:

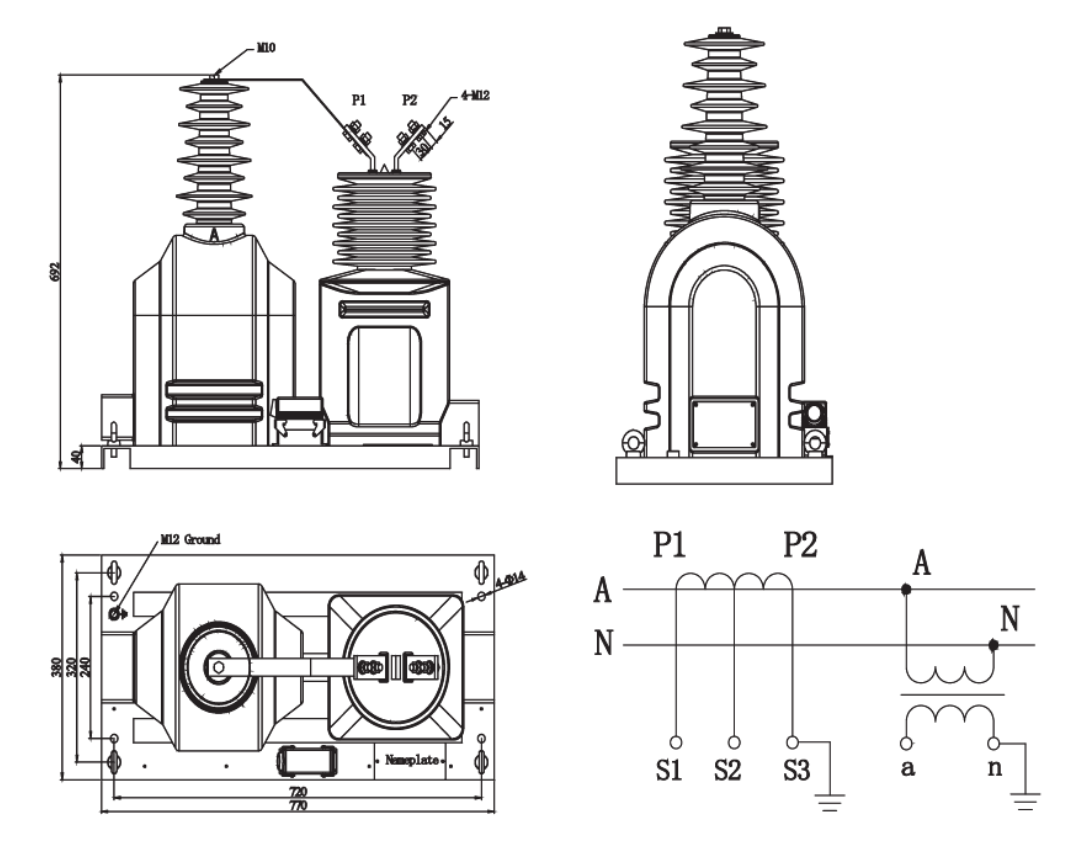

Outline Drawing:
