JSZXW18-12 12kV Outdoor Three-Phase Combined Transformer
Key attributes
| Brand | Wone Store |
| Model NO. | JSZXW18-12 12kV Outdoor Three-Phase Combined Transformer |
| Rated frequency | 50/60Hz |
| Rated insulation voltage | 12kV |
| Series | JSZXW |
Product descriptions from the supplier
Product Overview
This three phase, six compositions combined CT&VT, consists of three semi-insulation VTs of Y-Y wiring and three CTs series connected with phase A,B,C. Secondary leads in junction box is easy for wiring and testing. Use epoxy resin insulation stunt structure for outdoor installation. Applicable for highest voltage for equipments no more than 24kV for metering/measuring measurement in power system.
Features
use high properties iron core to meet high accuracy,big burden etc.
use epoxy resin cast insulation structure to improve anti-pollution,anti-moisture etc.
use full-sealed cast insulation type.
Technical Data
Installation site：Outdoor
Rated Frequency：50/60Hz
Burden power factor： COSФ=0.8(lagging)
Technical standard accords wiht：IEC 60044-1&2

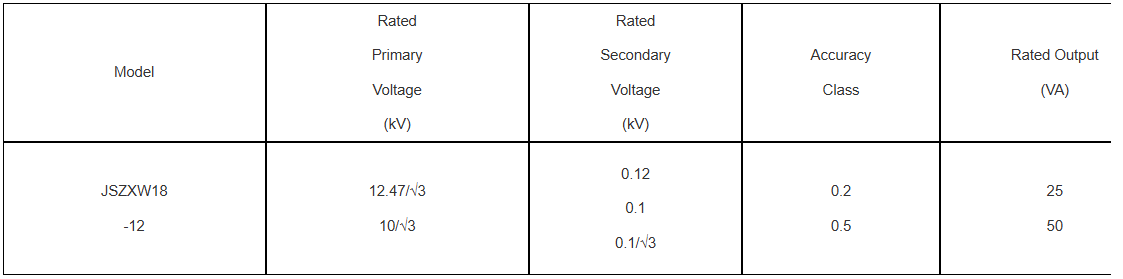

Specification
Note: Upon request we are glad to offer transformers accordign to other technical specs.
Application:Use for highest voltage for equipments no more than 17.5kV,for current/voltage measurement in power system.

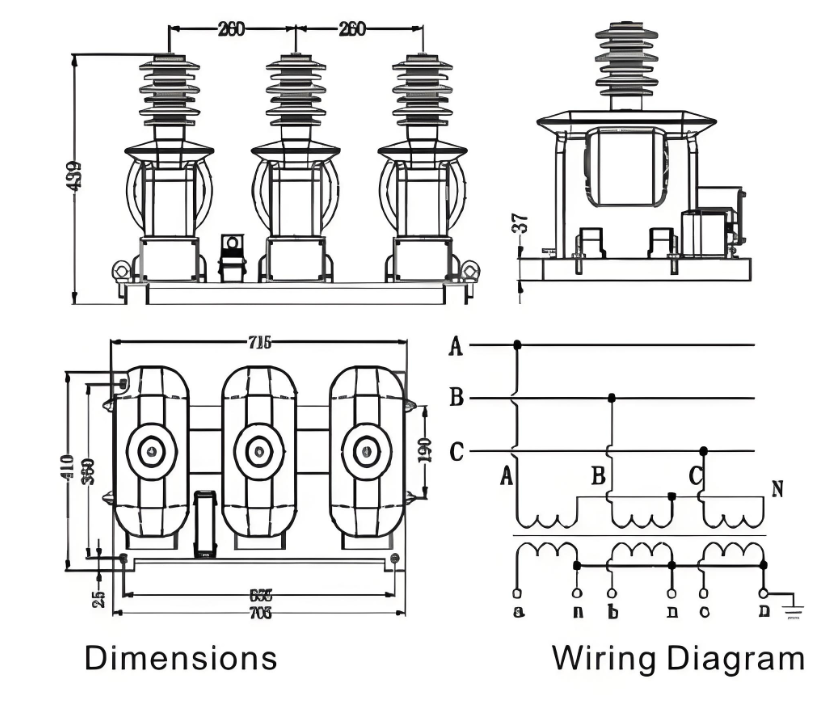

Outline Drawing
