JLDZXW1-72.5 outdoor combined transformer
Key attributes
| Brand | Wone Store |
| Model NO. | JLDZXW1-72.5 outdoor combined transformer |
| Rated voltage | 72.5kV |
| Rated frequency | 50/60Hz |
| Series | JLDZXW |
Product descriptions from the supplier
Product Overview
This single phase combined CT&VT consists of one semi-insulation VT and one CT. Secondary leads in junction box is easy for wiring and testing. Use epoxy resin insulation stunt structure for outdoor installation. Applicable for highest voltage for equipments no more than 72.5kV for metering/measuring in power system.
Features:
Use high properties iron core to meet high accuracy, big burden etc.
Use epoxy resin cast insulation structure to improve anti-pollution, anti-moisture etc.
Use full-sealed cast insulation type
Outdoor installation
Technical Data:
Installation site: Outdoor
Rated Frequency: 50/60Hz
Burden power factory: Cosφ=0.8（lagging）
Technical standard accords with IEC 60044-1＆2,IEC 61869-1＆2＆3
Technical Parameters

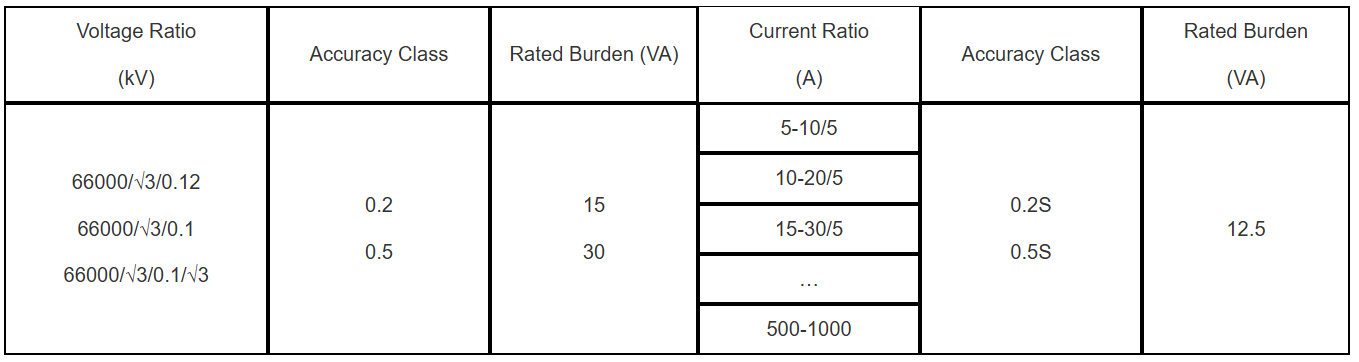

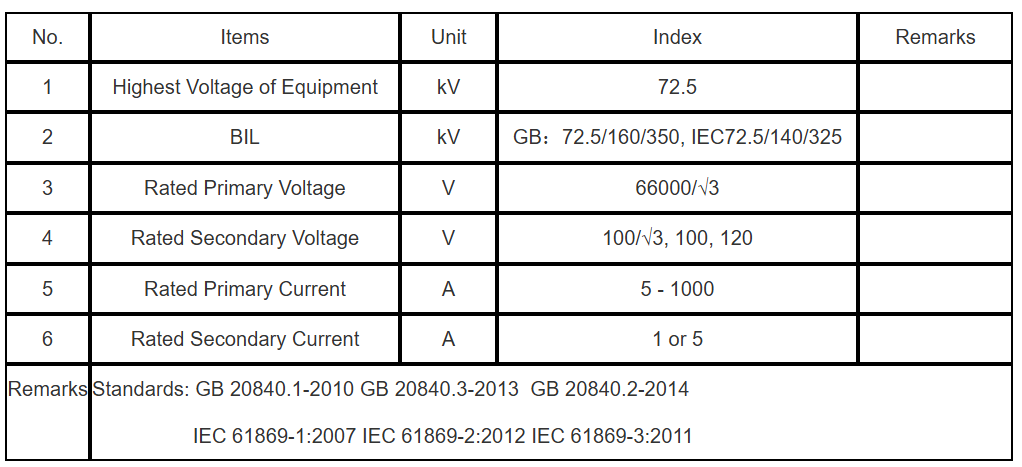

Parameters not only limited as chart. We offer customized CT&VT as your requirements.
Parameters
Application:Use for highest voltage for equipments no more than 72.5kV, for current/voltage measurement in power system.

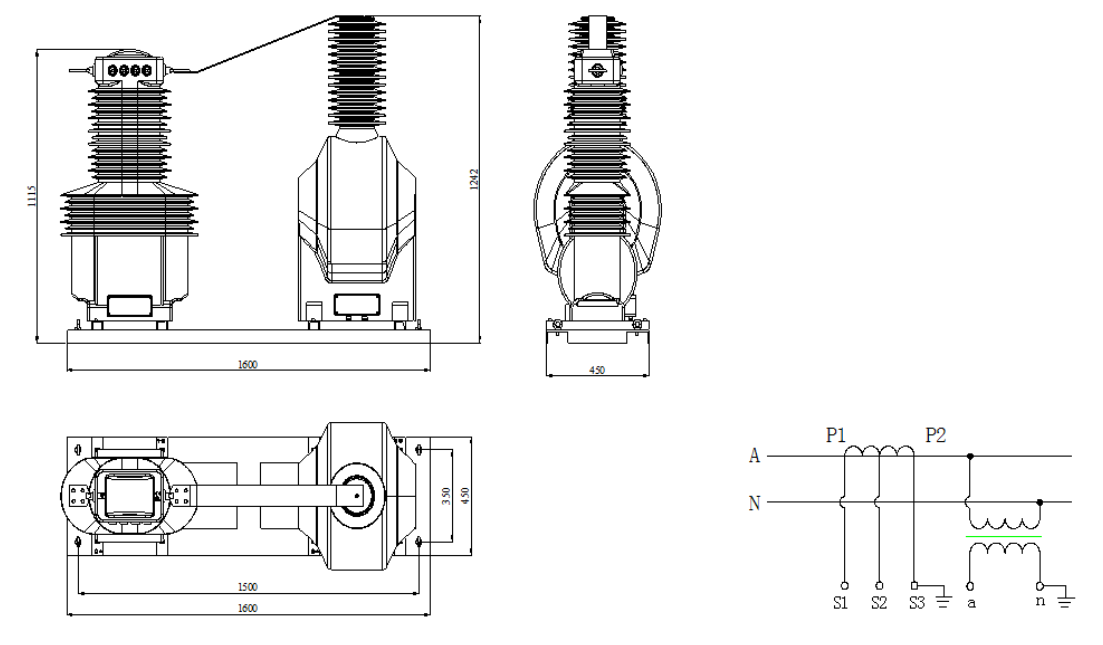

Drawing and Wiring:
Particular：Parameters not only limited as chart. We offer customized CT&VT as your requirements.
