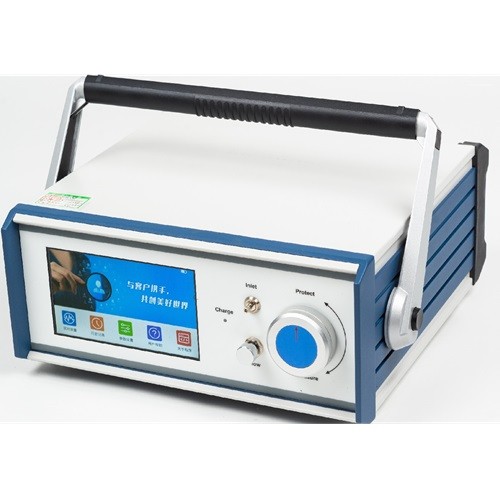

KW6001 Series SF6 Gas Trace Moisture Tester
Zhejiang Wone IT Service Co., Ltd.
1yrs +
staff 1000+m² US$300000000+
Key attributes
| Brand | Wone Store |
| Model NO. | KW6001 Series SF6 Gas Trace Moisture Tester |
| Rated voltage | 220V |
| Series | KW6001 Series |
Product descriptions from the supplier
Description
Overview
Portable design: The instrument is lighter, easy to carry and use.
Fast measurement: No waiting is needed after the instrument is powered on. Measurement can be carried out instantly, and the humidity value can be obtained quickly.
Fast gas collection: Only about 2L (101.2kPa) of gas is needed for measurement.
Self-locking connector: Adopts a self-locking connector imported from Germany, safe and reliable, no air leakage.
Data storage: Uses a large-capacity design, which can store up to 50 sets of test data at most.
Clear display: The liquid crystal screen directly displays dew point, micro-water (ppm), ambient temperature, ambient humidity, time and date, battery level, etc.
RS232 interface: Can be connected to a serial printer for data printing.
Built-in power supply: Built-in rechargeable battery, which can work continuously for 10 hours after being fully charged once.
Parameters
Project |
Parameters |
|
dew point |
Measurement range |
-60℃~20℃ |
Measurement precision |
±2℃ |
|
Precision time |
≤180S |
|
Power supply |
12V Lithium battery |
|
Changer rated |
AC 180V~260V 50/60Hz |
|
Standby power consumption |
≤1.8W |
|
Size |
250mmx100mmx300mm |
|
Weight |
3kg |
|
