LMZW-0.72 Outdoor Current Transformer
Zhejiang Wone IT Service Co., Ltd.
1yrs +
staff 1000+m² US$300000000+
Key attributes
| Brand | Wone Store |
| Model NO. | LMZW-0.72 Outdoor Current Transformer |
| Rated frequency | 50/60Hz |
| Rated current ratio | 500/5 |
| Series | LMZW |
Product descriptions from the supplier
Description
Product Overview
Epoxy Resin Vacuum Casting Current Transformer with anti-aging, is suitable for outdoor environment ,for measuring current ,energy and protective relaying in AC circuit bellow 0.66Kv.
Working circumstance and installation condition
Installation circumstance :Indoor
Ambient temperature:-5℃-40℃
Ambient humidity: RH≤80%
Altitude:≤1000m
Atmosphere: NO serious pollution
Construction Feature
Epoxy resin casting current transformer ,cores adopt cold-rolled silicon steel .primary winding is surrounded on secondary winding and have installing plate on the bottom of transformers.

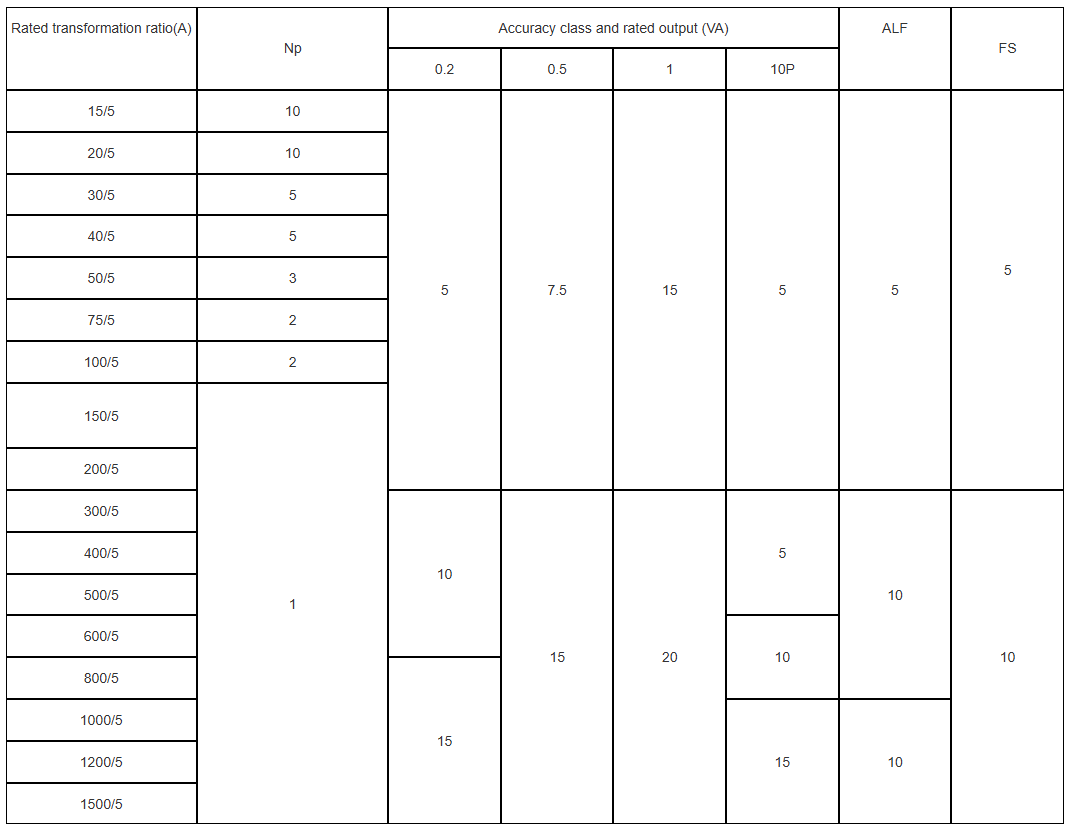

Main technical parameter
Rated voltage: 0.6 kV
Rated Frequency: 50/60Hz
Rated Primary Current:15-1500A
Rated Secondary Current:5A
Longtime working under 120% rated current
6.Power-frequency withstand voltage on secondary winding to primary and ground:3kV/1min,non sparking.

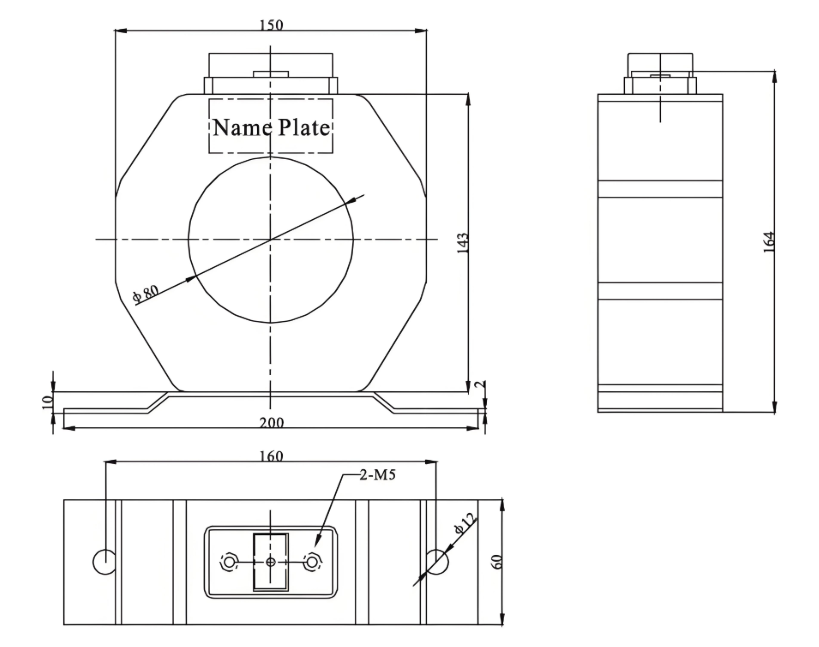

Outline drawing
