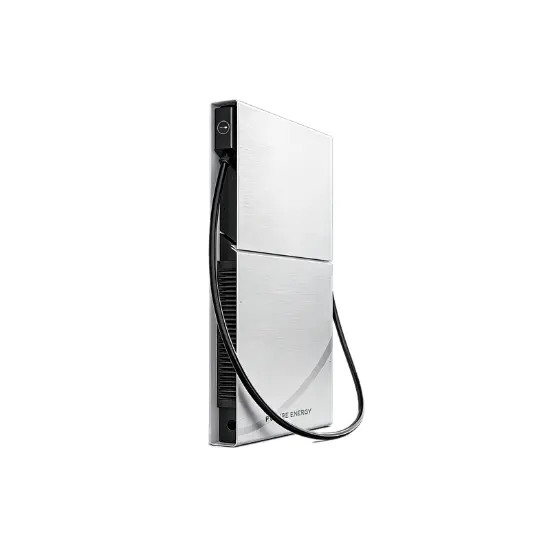

Ultra thin columnar DC Charger
Key attributes
| Brand | RW Energy |
| Model NO. | Ultra thin columnar DC Charger |
| Rated voltage | 3*230(400)V |
| Rated normal current | 125A |
| Rated Output Rating | 60kW |
| Connector Options | CHAdeMO |
| Series | WZ15L |
Product descriptions from the supplier
Product Overview
This high-efficiency, space-saving DC charger is tailored for medium-to-large scenarios like enterprise fleets, commercial complexes, highway service areas, and government/campus parking lots. It integrates 30kW/40kW changing modules to deliver 40kW/60kW rated output, balancing powerful performance with a compact wall-mounted design (no need for large floor space). Supporting mainstream standards (GBT, CCS1/CCS2, CHAdeMO, Tesla, NACS), it's compatible with most domestic and foreign new energy vehicles without adapters. With ultra-low failure rate, air-cooled heat dissipation, wide operating temperature range (-30°C to 75°C), simple operation, and low noise, it ensures stable, convenient charging in various environments.
Key Features
Dual High-Power & Efficient Charging: 30kW/40kW modules (40kW/60kW output), nominal efficiency ≥94%, shortening charging time.
Compact Design: Dimensions 1300mm x 850mm x 120mm, minimal floor space occupation.
Easy Installation & Operation: No complex civil engineering; 2-second long press to start, brief press to shut down (auto-off after 2s).
Full-Standard Compatibility: Complies with GBT 18487, ISO 15118, CHAdeMO 1.2/2.0, NACS, etc., strong versatility.
Stable Operation: Optimized hardware, air-cooled heat dissipation, -30°C~75°C operating temperature, adapting to harsh conditions.
Low Noise: Operating noise ＜65db, suitable for commercial/office/public areas.
Customizable Cable Length: 3.5m/5m/7m optional, improving charging convenience.
Comprehensive Safety Protection: Over-voltage/under-voltage/over-current/short-circuit protection; input-output insulation ＞2.5kV.
Energy-Saving: Power factor ＞0.98, reducing reactive power loss.
Technical Parameters
Product Model |
WY-40kW |
WY-60KW |
Input Voltage |
380VAC (3P+N+PE) / 50Hz |
|
Output Voltage |
200 - 750VDC |
|
Output Current (default） |
125A |
200A |
Standard for Gun Muzzle |
GBT / CCS1 / CCS2 / CHAdeMO / Tesla |
|
Charging Module |
30KW |
40KW |
Efficiency |
≥94% at nominal output power |
|
Power Factor |
＞0.98 |
|
Operating Temperature |
-30°C to 75°C |
|
Altitude |
< 3000m |
|
Working || Storage Humidity |
≤95% RH / ≤ 99% RH (Non-condensing) |
|
AC Input Cable and Switch |
3*16mm2+2*10mm2，1m 80A / 3*25mm2+2*16mm2, 1m 125A |
|
Weight |
50kg / 60kg |
|
Dimensions (L x D x H) |
1300mm x 850mm x 120mm |
|
Installation |
wall-mounted |
|
Startup Mode |
Press and hold the power button for 2 seconds to power on. |
|
Shutdown Mode |
Press the power button briefly to shut down after 2 seconds. |
|
Power Electronics Cooling |
Air Cooled |
|
Standard |
GBT 18487 & GBT 27930 / ISO 15118 / IEC 61851 / SAE J1772/ CHAdeMO1.2 & CHAdeMO 2.0 / NACS |
|
Charging Cable Length |
3.5m / 5m / 7m（Optional） |
|
Noises |
＜65db |
|
Ingress Protection |
IP30 |
|
Insulation (input - output) |
＞2.5kV |
|
Electrical Safety |
Over-voltage protection, under-voltage protection, over-current protection, short-circuit protection |
|
Application Scenarios
Medium-Sized Enterprise Fleets: Suitable for logistics companies/online car-hailing operators with 10-30 vehicles; centralized charging during lunch breaks/off-peak hours.
Commercial Complexes: Parking garage value-added service; saves space, fast charging during shopping/dining.
Highway Service Areas: Supplements large charging stations; compact for dense installation, reducing queuing time.
Government/Campus Parking Lots: Wall-mounted installation fits limited space; low failure rate eases property management.
New Energy Vehicle 4S Stores: Charges maintenance/test drive/customer vehicles; multi-standard compatibility enhances professionalism.
Logistics Transit Stations: Rapid charging during loading/unloading; integrated design fits limited space without affecting cargo handling.
WZ15L (40/60kW) focuses on medium to high power, while WZ15W (20/30kW) emphasizes lightweight and portable installation. When space is extremely limited, choose WZ-15W, which does not occupy ground space. If there is ample space, choose WZ-15L to improve charging efficiency.
The default length for regular cables is 3.5m, and the entire range supports customized cables of 3-7M length
Peak efficiency ≥ 96%; The power factor is all>0.98, with low energy loss.
