If the positive and negative terminals of an electrolytic capacitor are connected in reverse, i.e., reverse-biased, it can lead to a series of problems and potentially damage the capacitor. Electrolytic capacitors are polarized capacitors that contain an electrolyte. The positive terminal is typically a metal foil or a metal foil coated with an oxide layer, while the negative terminal is usually made of metal powder or carbon. The electrolyte serves to isolate the positive and negative terminals

Connecting two polarized capacitors (typically electrolytic capacitors) together requires careful attention to their polarity to ensure they operate correctly and avoid damage. Polarized capacitors have distinct positive and negative terminals, and incorrect connections can lead to damage or even explosions. Here are some guidelines on how to properly connect polarized capacitors:Parallel Connection (Parallel Connection)If you want to connect two polarized capacitors in parallel to increase the

Capacitors of different voltage levels can be used in parallel under certain conditions, but some key factors need to be noted to ensure safe and efficient operation. Here are some details about parallel capacitors with different voltage levels:Parallel possibility Voltage matching: First, the rated voltage of the capacitor should be lower than or equal to the rated voltage of the circuit, especially the direct current container. If the voltage difference is too large, it may cause the capacitor

The reaction of the capacitor when the inductor leads the voltageWhen the rate of voltage change on the inductor is higher than the rate of current change, the inductor is inductive, and the voltage is ahead of the current. Under such conditions, we discuss the reaction of the capacitor.The phase relationship between voltage and currentIn circuitry, the phase relationship between voltage and current refers to the time difference and Angle difference between them. In an AC circuit, the phase rela

Series Capacitors are widely used in power systems, especially in transmission lines to improve the transmission capacity of the system, improve voltage regulation and reduce losses. However, there are several key issues to note when designing and calculating series capacitors:Voltage distribution problemDescriptionWhen multiple capacitors are connected in series, the voltages on each capacitor are not necessarily equal, but are distributed proportionally according to their respective capacitanc

The specific process of connecting AC capacitors can be changed according to different application scenarios, for example, in AC filter circuits, the connection process is as follows: Basic structure: The AC filter capacitor wiring diagram consists of a capacitor and other circuit elements. The two ends of the capacitor are connected to the positive and negative ends of the AC power supply, while the other circuit elements are connected to the two ends of the capacitor. Working principle: When t

What is a MOS Capacitor?MOS Capacitor DefinedMOS stands for Metal Oxide Semiconductor. An MOS capacitor comprises a semiconductor body or substrate, an insulator, and a metal gate. Typically, the gate is made from heavily doped n+ poly-silicon that functions like metal. Silicon dioxide (SiO2) serves as the dielectric material between the capacitor plates, where the metal and semiconductor layers act as the two plates. The capacitance of an MOS capacitor varies with the voltage applied to its gat

What is Capacitor Bank?Capacitor Bank Definition A capacitor bank is a collection of multiple capacitors used to store electrical energy and enhance the functionality of electrical power systems.Power Factor CorrectionPower factor correction involves adjusting the capacitor bank to optimize the use of electricity, thereby improving the efficiency and reducing costs.Capacitor Bank Classification Shunt Capacitor BanksAdvantages Simple, cheap, and easy to install and maintain. Provide more flexibil

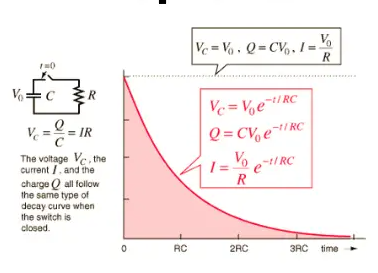

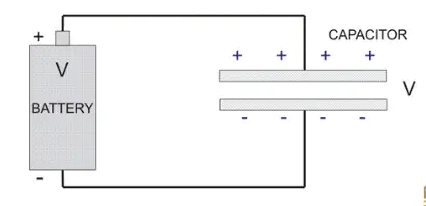

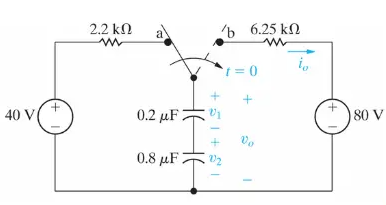

What is a The Transient Behavior of Capacitor ?Capacitor transient response definitionThe transient response of a capacitor is the period during which it charges or discharges, changing its voltage and current over time.Charging behaviorWhen a voltage is applied, the capacitor is charged and the current starts at a high level and drops to zero as the voltage at its ends increases.Charging behaviorWhen a voltage is applied, the capacitor is charged and the current starts at a high level and drops

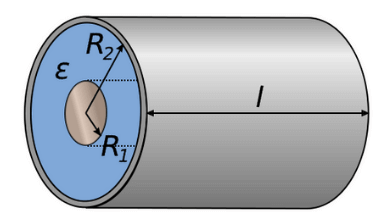

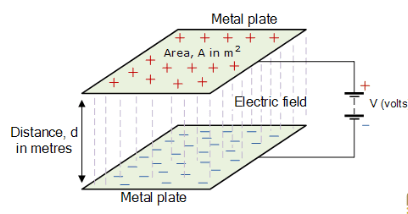

What is a Cylindrical Capacitor?Cylindrical capacitor definitionA cylindrical capacitor is defined as a capacitor with a central conductor, an insulating layer, and an externally grounded metal cover.Basic structure of cylindrical capacitorIt is generally composed of two metal electrodes, an insulating medium and a shell.Working principle of cylindrical capacitorThe property of a capacitor to store electrical energy. When the capacitor is connected to the power supply circuit, ‌ after the chargi
