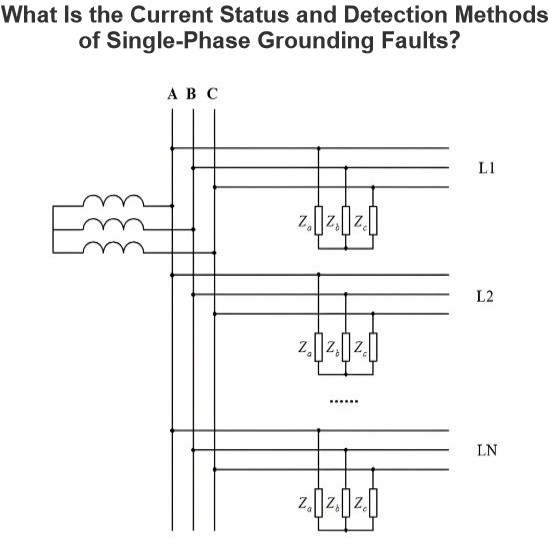

The frequency division method enables the measurement of grid-to-ground parameters by injecting a current signal of a different frequency into the open delta side of the potential transformer (PT).This method is applicable to ungrounded systems; however, when measuring the grid-to-ground parameters of a system where the neutral point is grounded via an arc suppression coil, the arc suppression coil must be disconnected from operation beforehand. Its measurement principle is shown in Figure 1.As

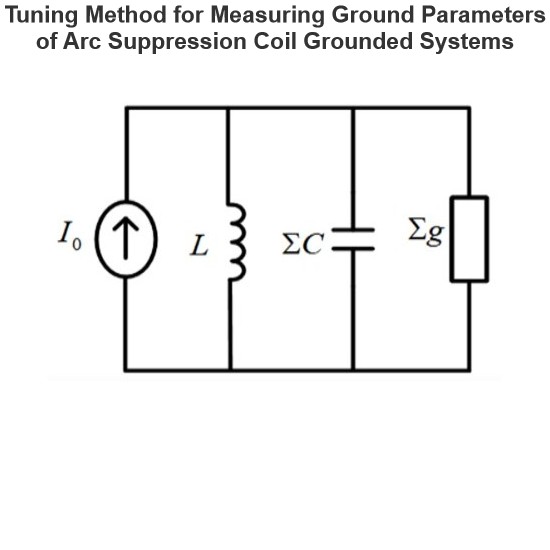

The tuning method is suitable for measuring the ground parameters of systems where the neutral point is grounded via an arc suppression coil, but not applicable to ungrounded neutral point systems. Its measurement principle involves injecting a current signal with continuously varying frequency from the secondary side of the Potential Transformer (PT), measuring the returned voltage signal, and identifying the system's resonant frequency.During the frequency sweeping process, each injected heter

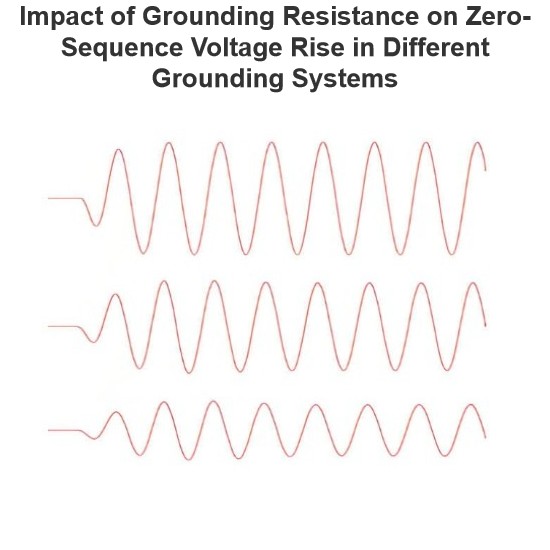

In an arc - suppression coil grounding system, the rising speed of the zero - sequence voltage is greatly affected by the value of the transition resistance at the grounding point. The larger the transition resistance at the grounding point, the slower the rising speed of the zero - sequence voltage.In an ungrounded system, the transition resistance at the grounding point has basically no impact on the rising speed of the zero - sequence voltage.Simulation Analysis: Arc - suppression Coil Ground

Current Division RuleA parallel circuit functions as a current divider, where the incoming current splits among all branches while the voltage across each branch remains constant. The Current Division Rule is used to determine the current through circuit impedances, as illustrated by the circuit below:The currentI splits intoI1 andI2 across two parallel branches with resistancesR1 andR2, whereVdenotes the voltage drop across both resistances. As is known,Then the equation of the current is writt

The Mesh Current Analysis Method is utilized to analyze and solve electrical networks with multiple sources or circuits comprising numerous meshes (loops) containing voltage or current sources. Also known as the Loop Current Method, this approach involves assuming a distinct current for each loop and determining the polarities of voltage drops across loop elements based on the assumed direction of the loop current.In mesh current analysis, the unknowns are the currents in different meshes, and t

Nodal Voltage AnalysisNodal voltage analysis is a method for solving electrical networks, particularly useful when all branch currents need to be computed. This approach determines voltages and currents by leveraging the nodes of a circuit.Anodeis a terminal where three or more circuit elements connect. Nodal analysis is commonly applied to networks with multiple parallel circuits sharing a common ground terminal, offering the advantage of requiring fewer equations to solve the circuit.Principle

Definition of Series Magnetic CircuitDefinition: A series magnetic circuit is defined as a magnetic pathway composed of multiple sections with varying dimensions and materials, all carrying the same magnetic field. Consider a circular coil or solenoid with distinct dimensional parameters, as illustrated in the figure below:Series Magnetic Circuit AnalysisA currentIflows through a solenoid withNturns wound around one section of a circular coil, inducing a flux Φ in the core.a₁, a₂, a₃: Cross-

AC Circuit FundamentalsAn AC circuit is defined as a circuit energized by an alternating power source. Alternating current (AC) is widely used for domestic and industrial applications due to its unique characteristics: unlike DC, both the magnitude and direction of current and voltage in an AC circuit vary periodically over time.AC waveforms typically follow a sinusoidal pattern, completing one cycle with equal positive and negative halves. This behavior is mathematically described as a function

DefinitionAn electrical grid, also known as a power grid, is defined as a comprehensive network that integrates power generation, transmission, and distribution units. Its primary function is to facilitate the transfer of electrical power from power generation sources to end - users. A substantial amount of electricity is transmitted from power generation stations to load centers at voltages of 220kV or even higher. The network composed of these high - voltage transmission lines is referred to a

A substation supplies energy to the local area where the power lines are located. Its primary function is to gather the high - voltage energy transmitted from the generating station and then step down the voltage to a suitable level for local distribution. Additionally, it provides facilities for switching operations.There are two main types of substations. One is the simple switching - type substation, which is responsible for establishing different connections between transmission lines. The o
