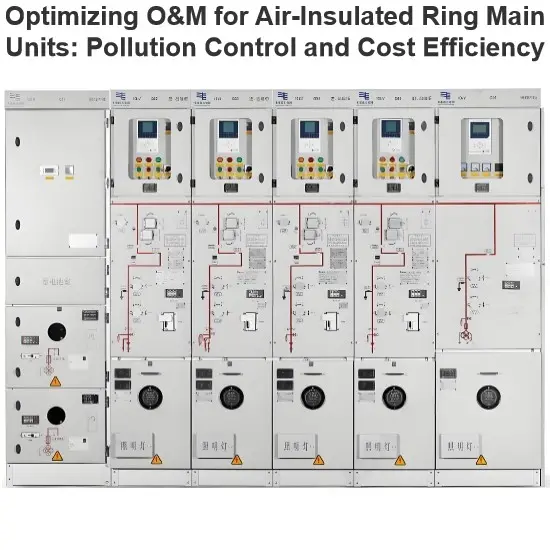

1. Integrated Operation and Maintenance Strategy for Medium-Voltage Distribution EquipmentTo effectively prevent discharge faults in distribution equipment, it is essential to establish a corresponding operation and maintenance (O&M) strategy. This strategy should focus on air-insulated ring main units (RMUs) as the primary subject, utilizing live-line detection as a key method and aiming for closed-loop defect elimination. This approach establishes a scientific and effective closed-loop man

1. Introduction to 10kV SF6 Ring Main Units (RMUs)A 10kV SF6 ring main unit typically consists of three main parts: the gas compartment (tank), the operating mechanism compartment, and the cable connection compartment. The gas compartment is the core component of the RMU. It is filled with SF6 gas and houses critical elements such as the load switch, busbars, and switch shaft. The load switch features a three-position design—comprising closing, opening, and grounding functions&mdas

SF6 Fully Insulated Gas-Insulated Ring Main Units (hereinafter referred to as RMUs) primarily consist of load switch units and high-voltage AC load switch-fuse combination appliances (hereinafter referred to as combination appliances). Depending on user requirements, they can be configured as either common-tank or unitized structures.In practical engineering applications, electrical connections are typically established using either top-mounted solid-insulated busbars or side-mounted plug-in bus

A 25 MVA electric arc furnace transformer at a certain company is an equipment imported from the former Soviet Union. It consists of three single-phase transformers, each rated at 8.333 MVA, with a connection group of D,d0. The primary voltage is 10 kV, and the secondary voltage ranges from 140 to 230.4 V. The tap-changing method is on-load tap changing with 21 steps (steps 11, 12, and 13 are combined as one step, totaling 23 positions). Each phase can be regulated independently, allowing separa

On the morning of January 1st at 9:00 AM, the Transformer Work Zone of the Electrical Maintenance Department received an emergency repair task: a 40,000 KVA electric arc furnace transformer at a steel plant had failed and needed replacement. As a critical piece of equipment in steelmaking, the furnace transformer directly impacts the output of upstream and downstream production lines. This replacement task was urgent, challenging, and technically demanding. Under the guidance and strong support

1 Failure Mechanisms of Power CapacitorsA power capacitor primarily consists of a housing, capacitor core, insulating medium, and terminal structure. The housing is typically made of thin steel or stainless steel, with bushings welded to the cover. The capacitor core is wound from polypropylene film and aluminum foil (electrodes), and the interior of the housing is filled with liquid dielectric for insulation and heat dissipation.As a fully sealed device, common failure types of power capacitors

Operation and Maintenance Guidelines for Power CapacitorsPower capacitors are static reactive power compensation devices primarily used to supply reactive power to electrical systems and improve power factor. By implementing local reactive power compensation, they reduce transmission line current, minimize line power losses and voltage drops, and contribute significantly to improved power quality and higher equipment utilization.The following outlines key aspects of power capacitor operation and

Discussion on Operation, Maintenance, and Fault Management of Power CapacitorsPower capacitors play a vital role in power systems by improving voltage quality and enhancing operational efficiency and economic performance. However, during long-term operation, they may experience various failures that affect their performance and reliability, potentially threatening the safety and stability of the entire system. Therefore, in-depth study of their operation, maintenance, and fault handling is essen

Power capacitors are a crucial component in power systems, primarily used to provide reactive power compensation to improve the system's power factor and stabilize voltage, protecting equipment from voltage fluctuations. However, during actual use, power capacitors often face oil leakage issues, which not only degrade their performance but can also pollute the environment and even cause fires or other safety accidents. This significantly affects the lifespan of the equipment and poses a serious

1. Manifestations of Generator Set Transformer Failures1.1 Abnormal Temperature RiseAbnormal temperature rise directly reflects a transformer’s health and serves as a key fault - warning indicator. During operation, electromagnetic energy conversion causes iron and copper losses, which turn into heat. To ensure normal operation, transformers use heat - dissipation mechanisms like oil circulation and heat radiation to maintain internal temperature balance.Thermometers and online detecti
